Description

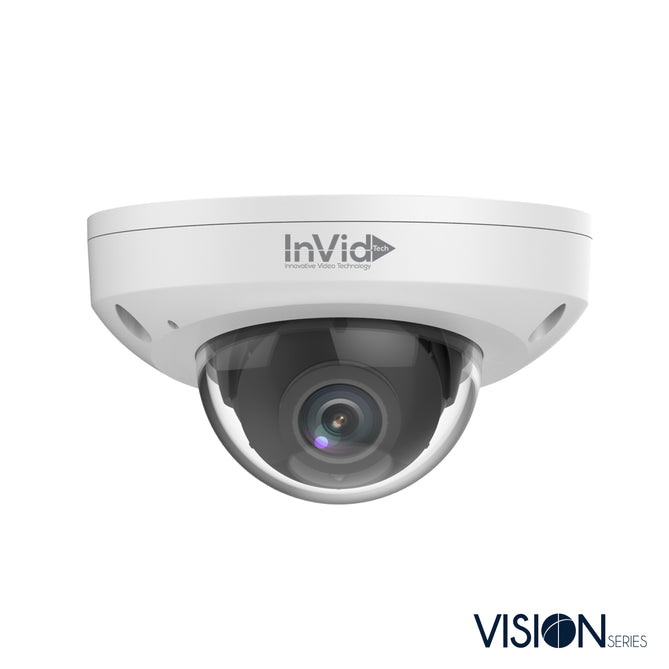

4 Megapixel IP Plug & Play Low Profile, Fixed Lens, up to 98’ IR Range, WDR, Audio Input/Output, Built-in Mic, SD Card Slot,12VDC
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 4 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 98’
- Smart IRs
- Starlight Illumination
- Ultra H.265,H.265,H.264,MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- Cloud Upgradeable
- Smart Analytics
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output
- IP67 Weatherproof
- IK10 Vandal Resistant
- 12VDC
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
|
Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
Lens |
2.8mm@F1.6 |
DORI Distance |
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) |
2.8 206.7(63m) 82.7(25.2m) 41.3(12.6m) 20.7(6.3m) |
|
Angle of View (H) |
101.1° |
Angle of View (V) |
55.3° |
Angle of View (O) |
111.1° |
Adjustment angle |
Pan: 0° ~ 90° Tilt: 0° ~ 68° Rotate: 0° ~ 360° |
Shutter |
Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR |
Day/Night |
IR-cut filter with auto switch (ICR) |
S/N |
>56 dB |
IR Range |
Up to 30m (98ft) IR range |
wavelength |
850nm |
IR On/Off Control |
Auto/Manual |
Defog |
Digital Defog |
WDR |
120dB |
Video |
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
H.264 code profile |
Baseline profile, Main Profile, High Profile |
Frame Rate |
Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; |
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
Video Bit Rate |
128 Kbps~16 Mbps |
9:16 Corridor Mode |
Supported |
OSD |
Up to 8 OSDs |
Privacy Mask |
Up to 4 areas |
ROI |
Up to 8 areas |
Motion Detection |
Up to 4 areas |
Image |
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital noise reduction |
2D/3D DNR |
Smart IR |
Support |
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping |
N/A |
BLC |
Support |
HLC |
Supported |
Intelligent |
|
Smart Intrusion Prevention |
Cross line, intrusion, enter area, leave area detection; |
Events |
|
Basic Detection |
Motion detection, tampering alarm, audio detection |
General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
Audio |
|
Audio Compression |
G.711 |
Suppression |
Supported |
Sampling Rate |
8KHZ |
Storage |
|
Edge Storage |
Micro SD, Up to 256GB |
Network Storage |
ANR, NAS(NFS) |
Network |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
Client |
InVid Vision (Mobile App) |
Vision Tools (IP Utility) |
|
InVid CMS |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
Interface |
|
Audio I/O |
Audio cable |
1 Input: impedance 35kΩ; amplitude 2V [p-p] |
|
1 Output: impedance 600Ω; amplitude 2V [p-p] |
|
Built-in Mic |
Supported |
Network |
1 M12 D-Coding 10M/100M Base-TX Ethernet |
Certifications |
|
Certifications |
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 EN 50155 |
General |
|
Power |
DC 12V±25% Power consumption: Max 6.0W |
Dimensions (Ø x H) |
Ø4.3” x 2.4” (Φ110 x 61mm) |
Net Weight |
0.82lb (0.37kg) |
Material |
Metal + Plastic |
Working Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
Strorage Environment |
-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing) |
surge protection |
2KV |
Ingress Protection |
IP67 |
Vandal Resistant |
IK10 |
