Description

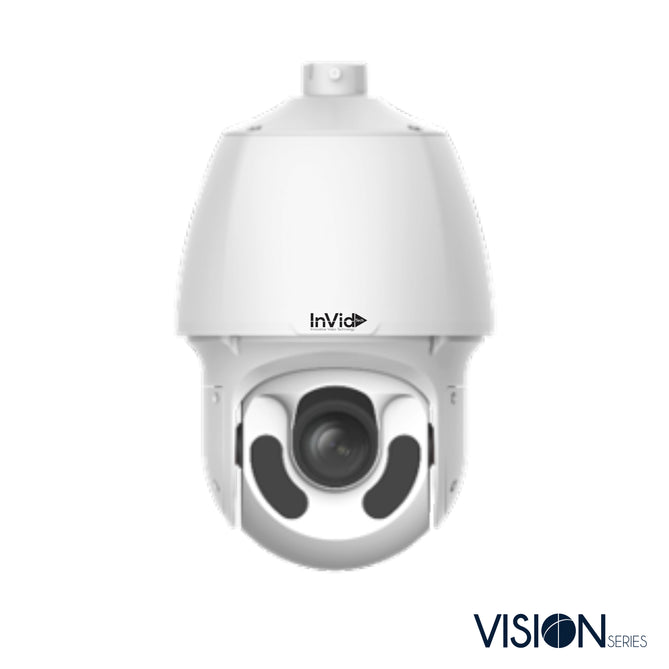

2 Megapixel IP Plug & Play, Outdoor PTZ, Motorized Auto-Focus, up to 492 IR Range, WDR, Audio Input/Output, SD Card Slot, DC24V/PoE++
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 2 Megapixel Resolution
- Motorized Auto-Focus, 4.5-148.5mm
- True Day/Night with Smart IR Range up to 492’
- Starlight Illumination
- Ultra H.265,H.265,H.264,MJPEG Compression
- 60 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Audio Input
- Audio Output
- IP66 Weather Resistant
- DC24V/PoE++ Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
VIS-P2PTZXIR33NH |
|
Sensor |
1/2.8”, 2.0 megapixel, progressive scan, CMOS |
|
Min. Illumination |
Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
WDR |
120dB |
|
S/N |
>52dB |
Lens |
|
|
Lens |
4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
|
Digital Zoom |
16 |
|
Optical Zoom |
33 |
|
Iris |
Auto; F1.5 ~ F4.0 |
|
Angle of View (H) |
56.2° ~ 2.6° |
|
Angle of View (V) |
33.5° ~ 1.4° |
|
Angle of View (O) |
69.1° ~ 3.1° |
Dori |
|
|
DORI Distance |
Lens Detect(ft) Observe(ft) Recognize(ft) Identify(ft) 4.5mm 239.3 (72.9m) 95.7 (29.2m) 47.9 (14.6m) 23.9(7.3) 148.5mm 7179.3(2187.9m) 2871.3(875.2m) 1435.7(437.6m) 717.8(218.8m) |
Illuminator |
|
|
IR Range |
Up to 492 ft (150m) IR range |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; |
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
U-code |
Support |
|
ROI |
Support |
|
Video Stream |
Triple streams |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
24 areas, up to 4 areas per scene |
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital Defog |
Intelligent |
|
|
Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
|
People Counting |
Support people flow counting and crowd density monitoring |
Events |
|
|
Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
|
Auto Tracking |
Support (Based off Human & Vehicle Classification) |
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio |
|
|
Audio Compression |
G.711U,G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way Audio |
Support |
|
Suppression |
Support |
|
Sampling Rate |
8 kHz |
Storage |
|
|
Edge Storage |
Micro SD, up to 256 GB |
|
Network Storage |
ANR,NAS(NFS) |
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Client |
InVid Vision (Mobile App) |
|
Vision Tools (IP Utility) |
|
|
InVid CMS |
|
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 & below, Firefox 52 & below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
Pan & Tilt |
|
|
Pan Range |
360° (endless) |
|
Pan Speed |
0.1°/s ~ 200°/s |
|
Preset speed: 300°/s |
|
|
Tilt Range |
–15° ~ 90° (auto reverse) |
|
Tilt Speed |
0.1° ~ 200°/s |
|
Preset speed: 240°/s |
|
|
Number of Presets |
1024 |
|
Preset Patrol |
16 patrols, up to 64 presets for each patrol |
|
Route Patrol |
16 patrols, up to 32 actions for each patrol |
|
Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
|
Patrol Stay Time |
15s~1800s |
|
Preset Image Freeze |
Support |
|
Home Position |
Support |
Interface |
|
|
Audio I/O |
1/1 |
|
Alarm I/O |
2/1 |
|
Serial Port |
1 RS485 |
|
Built-in Mic |
N/A |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
1 BNC |
Certification |
|
|
EMC |
CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|
Safety |
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
|
Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General |
|
|
Power |
AC 24V±25%, DC 24V±25%, PoE++ (PSE Required) Power consumption: Max 41W |
|
Power Interface |
Wires with cold-pressed terminal |
|
Dimensions (Ø x H) |
Ø8.9” x 15.1” (Ø227 x 384.8mm) |
|
Weight |
11.88lb (5.39kg) |
|
Working Environment |
-40°F ~ 158°F (-40°C ~70°C) , Humidity: ≤95% RH (non-condensing) |
|
Storage Environment |
-40°F ~ 158°F (-40°C ~70°C) , Humidity: ≤95% RH (non-condensing) |
|
Surge protection |
6KV |
|
Reset Button |
Support |
