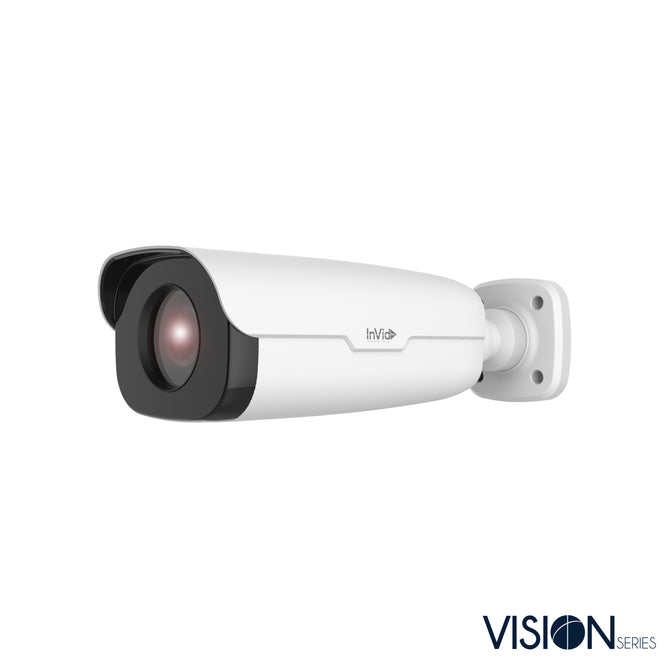

Invid VIS-P2BXIRA65143 2 Megapixel Bullet, Outdoor Bullet

Camera

Sensor

1/1.8", progressive scan , 2.0 megapixel, CMOS

Lens

6.5 ~ 143 mm, AF automatic focusing and motorized zoom lens

Optical  Zoom

22

DORI Distance

6.5mm: 255’ (Detect), 102’ (Observe), 51’ (Recognize), 26’ (Identify)

143mm: 5629’ (Detect), 2251’ (Observe), 1126’ (Recognize), 563’ (Identify)

Angle of view(H)

59°~3°

Angle of View (V)

34.6°~1.6°

Angle of View (O)

76.7°~3.7°

Adjustment angle

Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°

Shutter

Auto/Manual, 1~1/100000 s

Minimum Illumination

Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR

Iris

Auto/Manual, F1.5~F3.4, DC-Iris

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52 dB

IR Range

up to 200 m (656 ft) IR range

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream:2MP (1920×1080):Max. 60 fps;

Sub Stream:2MP (1920×1080):Max. 60 fps; Third Stream: D1 (720×576): Max. 60 fps

9:16 Corridor Mode

Supported

ROI

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs

Motion Detection

Up to 4 areas

Privacy Mask

Up to 8 areas

Smart

Behavior Detection

Intrusion, cross line, motion detection

Intrusion

Enter and loiter in a pre-defined virtual region

Cross line

Cross a pre-defined virtual line

Motion detection

Moving within a pre-defined virtual region

Recognition:

Face detection, Audio detection

Intelligent Identification

Defocus, Scene Change, Object Left, Object Moving

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output,

Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, up to 256  GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS,

NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF(Profile S, Profile G), API

Interface

Audio I/O

Audio cable

1 Input: impedance 35 kΩ; amplitude 2 V [p-p]

1 Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

 2/1

Serial Port

1 RS485

Network

1 RJ45 10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power

24 V AC ±25%, PoE+: PoE(IEEE 802.3at) (PSE Required, sold separately)

Power consumption: Max 21W

Dimensions (L × W × H)

15.6” ×5.4” ×4.4”  (396.5 × 137 × 112mm)

Weight

8.2 lb  (3.7 kg)

Working Environment

-40°F ~ 140°F (-40°C ~ +60°C), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67

Reset Button

Supported

Certification

UL
