Description

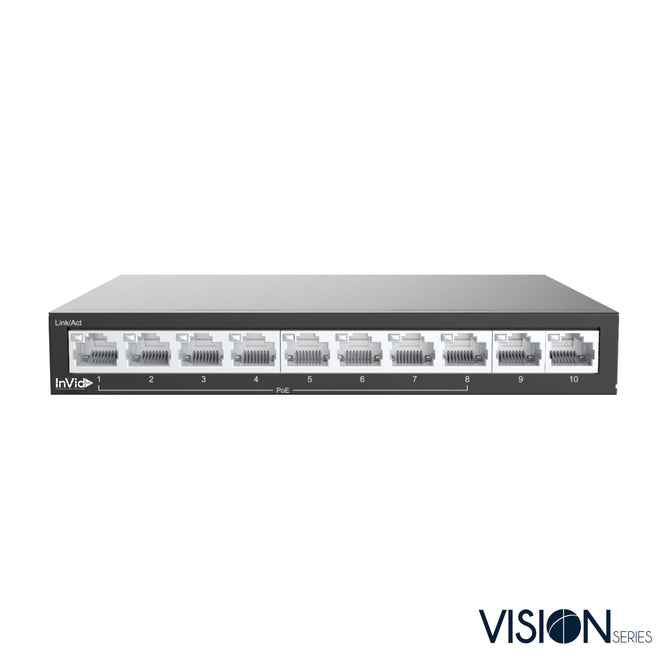

8-Port PoE Switch with 2 Uplink Ports
Features
- 10 x 100Mbps network ports (RJ45), including 8 PoE ports
- Multiple working modes to address your business needs:Normal, Secure and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 820 ft transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Model |
VIS-LRPOE8-2AN |
|
Ports |
10×100Mbps network ports (RJ45), including 8 PoE ports |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
|
Switching capacity |
2Gbps |
|
Forwarding performance |
1.49Mpps |
|
Packet Buffer |
448Kbit |
|
MAC |
1K |
|
Dimensions (W×D×H) |
6.7 x 4 x 1 in (171*101*25.5mm) |
|
Weight |
.64 lb (0.29KG) |
|
Power supply |
DC: 48/51V |
|
PoE |
802.3at/af (4/5+, 7/8-) |
|
Max. PoE Power |
Max capacity: 88W Max capacity for single port: 30W |
|
Prior Ports |
1 ~ 2 |
|
Cooling Fans |
0 |
|
Operating temperature |
32°F ~ 104°F (0°C-40°C) |
|
Operating humidity |
10% ~ 90% (noncondensing) |
|
Storage humidity |
5% ~ 90% (noncondensing) |
|
Indicator |
POWER: Steady on: AC input is normal Off: No AC input |
|
No PoE Indicator |
|
|
PoE-MAX: Off: The POE power supply power of the whole machine is less than 80% of the specification Steady on: The POE power supply power of the whole machine is greater than 85% of the specification |
|
|
LINK/ACT: Off: No link Steady on: Linked Flashing: Transmitting data |
|
|
Working Mode |
Default (Normal mode): All ports can communicate witheach other EXTEND (Surveillance mode): Transmission distance up to 250 meters |
|
Certification |
UL: A6152, E496771 |
