Description

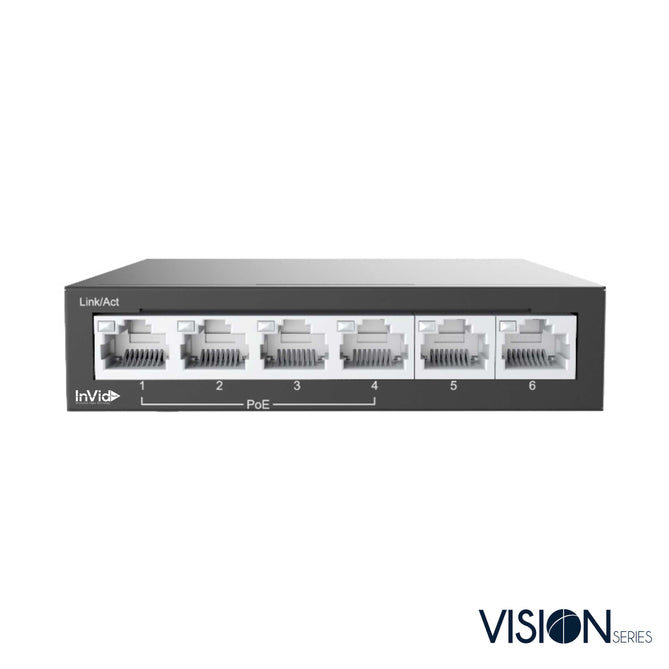

4-Port PoE Switch with 2 Uplink Ports
Features
- 6 x 100Mbps network ports (RJ45), including 4 PoE ports
- Multiple working modes to address your business needs: Normal, Secure and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 820 ft transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Model |
VIS-LRPOE4-2N |
Ports |
6×100Mbps network ports (RJ45), including 4 PoE ports |
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
Switching capacity |
1.2Gbps |
Forwarding performance |
0.90Mpps |
Packet Buffer |
448Kbit |
MAC |
1K |
Dimensions (W×D×H) |
4.3 x 3.9 x 1 in (108*100*25.5mm) |
Weight |
.4 lb (0.19KG) |
Power supply |
DC: 48/51V |
PoE |
802.3at/af (4/5+, 7/8-) |
Max. PoE Power |
Max capacity: 60W Max capacity for single port: 30W |
Prior Ports |
1 ~ 2 |
Cooling Fans |
0 |
Operating temperature |
32°F ~ 104°F (0°C-40°C) |
Operating humidity |
10% ~ 90% (noncondensing) |
Storage humidity |
5% ~ 90% (noncondensing) |
Indicator |
POWER: Steady on: AC input is normal Off: No AC input |
No PoE Indicator |
|
PoE-MAX: Off: The POE power supply power of the whole machine is less than 80% of the specification Steady on: The POE power supply power of the whole machine is greater than 85% of the specification |
|
LINK/ACT: Off: No link Steady on: Linked Flashing: Transmitting data |
|
Working Mode |
Default(Normal mode) : All ports can communicate witheach other. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
Certification |
UL: A6156, E496771 |
