Description

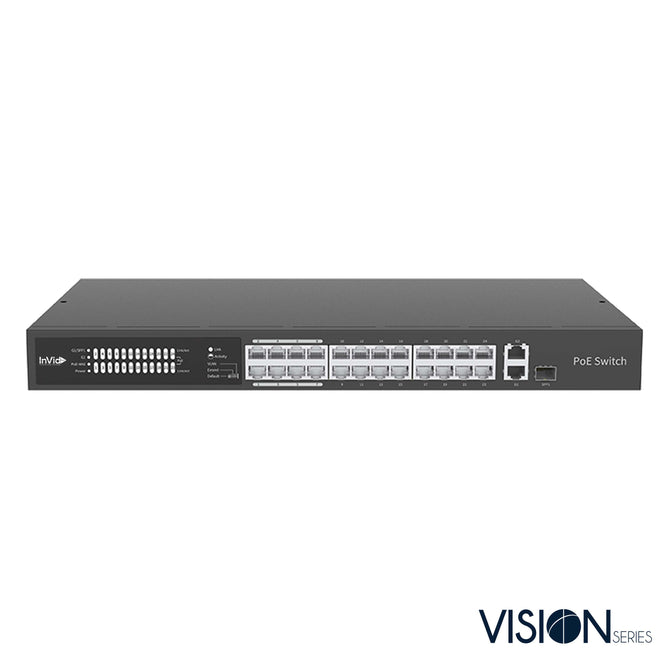

24-Port PoE Switch with 2 Uplink Ports
Features
- 24 x 100Mbps PoE ports (RJ45) + 1 x 1000Mbps Gigaethernet ports +1 x 1000Mbps Combo ports
- Multiple working modes to address your business needs: Normal, Secure and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 820 ft transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Model |
VIS-LRPOE24-2AN |
|
Ports |
24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x, I EEE802.3af,IEEE802.3at,IEEE802.3az |
|
Switching capacity |
8.8Gbps |
|
Forwarding performance |
6.55Mpps |
|
Packet Buffer |
4Mbit |
|
MAC |
16K |
|
Dimensions (W×D×H) |
17.3 x 9.6 x 1.7 in (440* 244.8 *44mm) |
|
Weight |
6.5 lb (2.93KG) |
|
Power supply |
AC: 100-240V, 50/60Hz |
|
PoE |
802.3at/af (4/5+, 7/8-) |
|
Max. PoE Power |
Max capacity: 370W Max capacity for single port: 30W |
|
Prior Ports |
1 ~ 8 |
|
Cooling Fans |
1 |
|
Operating temperature |
32°F ~ 104°F (0°C-40°C) |
|
Operating humidity |
10% ~ 90% (noncondensing) |
|
Storage humidity |
5% ~ 90% (noncondensing) |
|
Indicator |
POWER: Steady on: AC input is normal Off: No AC input |
|
PoE: Off: No PoE power supply Steady on: PoE power supply is normal |
|
|
PoE-MAX: Off: The POE power supply power of the whole machine is less than 80% of the specification Steady on: The POE power supply power of the whole machine is greater than 85% of the specification |
|
|
LINK/ACT: Off: No link Steady on: Linked Flashing: Transmitting data |
|
|
Working Mode |
Defaul t(Normal mode) : All ports can communicate with each other VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
|
Certification |
UL: A6158, E496771 |
