Authorized Invid Reseller

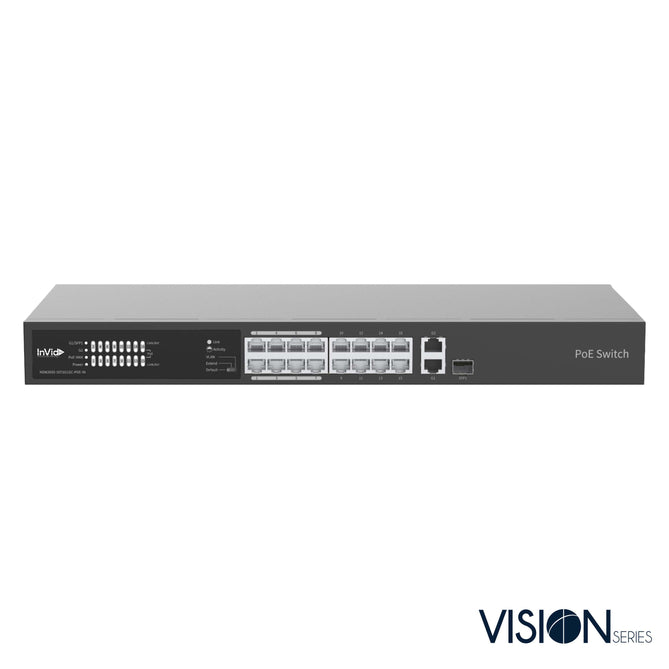

Invid VIS-LRPOE16-2AN 16-Port PoE Switch with 2 Uplink Ports

InvidSKU: VIS-LRPOE16-2AN

Price:
Sale price$367.84
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

16-Port PoE Switch with 2 Uplink Ports

Features

  • 16 x 100Mbps PoE ports (RJ45)+ 1 x 1000Mbps Gigaethernet ports +1 x 1000Mbps Combo ports
  • Multiple working modes to address your business needs:  Normal, Secure and Surveillance
  • Support port traffic control
  • Support for secure mode, all downlink ports can communicate only with uplink ports
  • Up to 820 ft transmission distance on surveillance mode
  • Support buffer optimization
  • All metal housing, safe and reliable

Model

VIS-LRPOE16-2AN

Ports

16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports

Standards

IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,

I EEE802.3af,IEEE802.3at,IEEE802.3az

Switching

capacity

7.2Gbps

Forwarding

performance

5.36Mpps

Packet Buffer

4Mbit

MAC

16K

Dimensions

(W×D×H)

17.3 x 7.5 x 1.7 in (440*189.8*44mm)

Weight

4.7 lb (2.12KG)

Power supply

AC: 100-240V, 50/60Hz

PoE

802.3at/af (4/5+, 7/8-)

Max. PoE

Power

Max capacity: 225W

Max capacity for single port: 30W

Prior Ports

1 ~ 8

Cooling Fans

1

Operating

temperature

32°F ~ 104°F  (0°C-40°C)

Operating

humidity

10% ~ 90% (noncondensing)

Storage

humidity

5% ~ 90% (noncondensing)

Indicator

POWER:

Steady on: AC input is normal

Off: No AC input

PoE:

Off: No PoE power supply

Steady on: PoE power supply is normal

PoE-MAX:

Off: The POE power supply power of the whole machine is less than 80% of the specification

Steady on: The POE power supply power of the whole machine is greater than 85% of the specification

LINK/ACT:

Off: No link

Steady on: Linked

Flashing: Transmitting data

Working

Mode

Defaul t (Normal mode) : All ports can communicate with each other

VLAN (Secure mode): Downlink ports can communicate only with uplink ports.

Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC

sends no message in a period of time.

Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.

Certification

UL: A6157, E496771
