Description

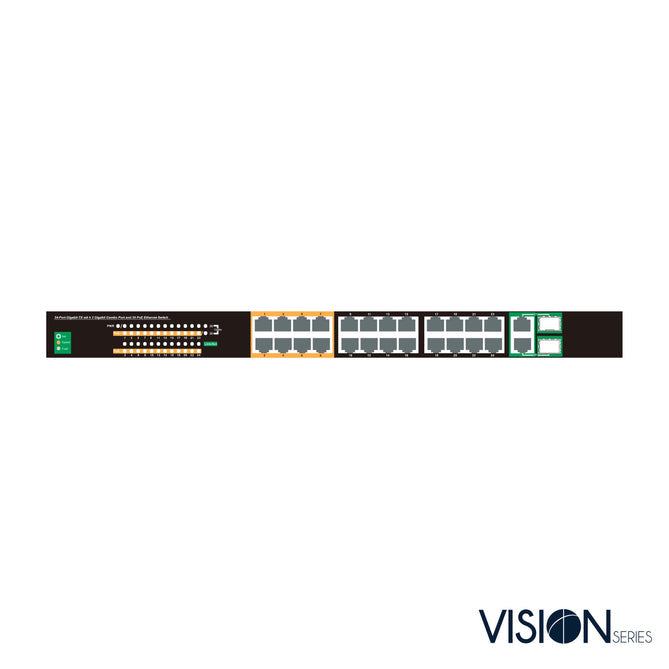

24+2x RJ45+ 2X SFP Gigabit, 19” Rack mountable case, 400W UL Listed
Features
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at
- Provides 24 10/100/1000Base-TX ports and 2 Gigabit Combo Provides 24 PoE injector and 400W Built-in power supply
- High back-plane bandwidth 52Gbps IEEE802.3x Flow control
- EMI standards complies with FCC, CE class B
Power |
|
|
Power Supply |
Built-in power supply |
|
Voltage Range |
AC110V |
|
Consumption |
400W for 24 PoE (Each Port 16.6 W) |
|
PoE |
IEEE/802.3 AT/AF, Max Capacity: 400W |
|
Ports |
1-24 Downlink RJ45 Uplink 2x RJ45 Uplink 2x SFP |
Ethernet |
|
|
Speed |
1~24 Port: 10/100/1000Mbps 25~26: Gigabit Combo |
|
Transmission Distance |
328ft (100Meter)for RJ-45 2Km 20Km for SFP Port The optical module is optional |
Network Switch |
|
|
Switching capacity |
52G |
|
Transfer Rate |
14,880 pps for 10Mbps 148,800 pps for 100Mbps 1,488,000 pps for 1000Mbps |
|
MACAddress |
8K MAC address table |
LINKA/ CT |
|
|
On (Green) |
The port is connecting |
|
Blinks |
The port is receiving or transmitting data |
|
Off |
The port is not linked successfully with the device |
POE |
|
|
On (Green) |
PD is connected |
|
Off |
No PD is connected or power forwarding fails |
|
PoE pin assignmnet |
V+ ( Rj45 Pin 1 ,2), V-( Rj45 Pin 3 ,6) |
Working Environment |
|
|
Working Temperature |
32°F ~ 104°F(0°C ~ 40°C) |
|
Storage Temperature |
-40°F ~ 158°F (-40°C ~ 70°C) |
|
Humidity Non condesing |
0~90% |
Mechanical |
|
|
Dimension L * W * H |
17.3 x 7.9 x 1.7 in (440mm*200mm*44mm) |
|
Color |
Gray |
|
Certification |
UL |
