Description

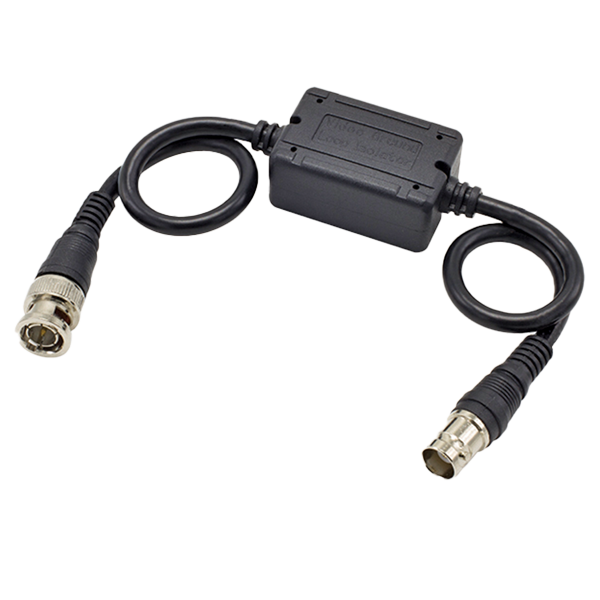

The ENFORCER 4-in-1 HD Ground Loop Isolator is a passive device that helps to reduce ground loop interference caused by a difference in ground potential. Ground loop isolators can be deployed in new installations or added to existing installations.
Compatible with TVI, CVI, AHD, and Analog signals, reduces ground loop interference, built-in surge protection, BNC terminals, passive operation.
- TVI / CVI / AHD / Analog compatible
- Reduces ground loop interference
- BNC terminals for easy installation
- Built-in surge protection
- Prevents video-signal distortion, picture tearing, cross talk, and other picture quality problems
- Passive operation – No external power required
- Use with standard BNC coax cables or with 4-in-1 HD video baluns
Specifications
| Bandwidth | Video DC to 40MHz |
| Insertion Loss | ≤0.5dB |
| Frequency Response | 5Hz~10MHz |
| Isolation Voltage | 800VDC (min.) |
| Insulation Resistance | ≥100MΩ |
| Surge Protection | 4kV, 10/700μs IEC 61000-4-5/1955 |
| Connector- In | BNC Male |
| Connector- Out | BNC Female |
| Impedance | 75Ω (BNC-to-BNC) |
| Cable Length | 7-7/8″ (200mm) each side |
| Material | ABS Plastic |
| Operating Humidity | 0~95% non-condensing |
| Operating Temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 1-11/16″x1-1/8″x1-3/16″ (43x28x21 mm) |
| Weight | 2.0-oz (57g) |
Troubleshooting
| Wavy or ghost image if connected to image processor (e.g., multiplexer or DVR), but not if directly to monitor |
|
| Image background flutters between dark and light |
|
| Image is wavy and shakes |
|
| Image is weak or faded |
|
| No image |
|
