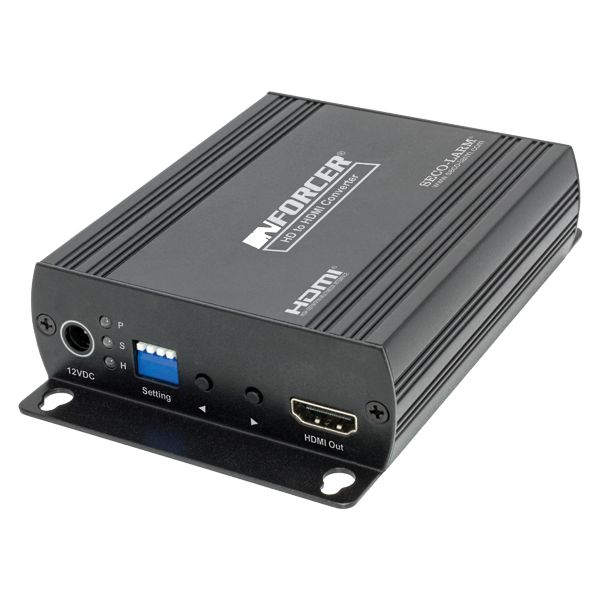

Seco-Larm VC-3YAQ 4-in-1 HD to HDMI Converter
Roll over image to zoom in Click on image to zoom
Seco-Larm VC-3YAQ 4-in-1 HD to HDMI Converter

Authorized Seco-Larm Reseller

Seco-Larm VC-3YAQ 4-in-1 HD to HDMI Converter

Seco-LarmSKU: VC-3YAQ
Our offices will be closed April 22-30th
Please expect slight shipping delays. Questions? Chat with us below
Price:
$139.59
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The SECO-LARM 4-in-1 HD to HDMI Converter is the ideal way to transform HD-TVI, HD-CVI, HD-AHD, or traditional analog video inputs into an HDMI, VGA, or CVBS signal. The converter also allows for HD Analog video loop output, HD Analog dual video input, and picture-in-picture modes. The HD to HDMI Converter is compact and can be mounted nearly anywhere.

  • Converts HD-TVI, HD-CVI, HD-AHD, or Analog/CVBS video to HDMI, VGA, CVBS, or loop output
  • Secondary BNC connection supports CVBS conversion, loop output, or dual HD Analog video input
  • Dual HD Analog video input mode (switch between multiple video inputs)
  • Wall mountable with included screws
  • Picture-in-picture mode when dual HD Analog video input used
  • HDMI/VGA output support: 480p, 576p, 720p, 1080i, 1080p
  • CVBS output support: NTSC, PAL
  • CVBS underscan adjustment
  • Compact, perfect for plug and play installation
  • Quick installation, no driver or operating system requirements



Specifications

Input Signal HD-TVI, HD-CVI, HD-AHD, NTSC, PAL
Output Signal HDMI, VGA, CVBS, loop output
Input resolutions supported 720p@25/30/50/60 Hz, 1080p@25/30 Hz, NTSC, PAL
Output resolutions supported HDMI/VGA – 480p, 576p, 720p@50/60 Hz, 1080i@50/60 Hz, 1080p@50/60 Hz, CVBS – NTSC/PAL
Output connector HDMI – Type A 19-pin female, VGA – D-SUB 15-pin female, BNC – 75Ω 1Vp-p
Input connector BNC (75Ω 1Vp-p)
Maximum input cable length HD-TVI, HD-CVI, HD-AHD: 984ft (300m); CVBS: 328ft (100m)
Maximum output cable length HDMI: 16ft (5m); VGA: 16ft (5m); CVBS: 328ft (100m)
Power supply 500mA@12VDC
Power consumption 350mA (max.)
Operating Humidity Up to 95%
Operating Temperature 32°~131° F (0°~55° C)
Dimensions 5-1/8″x3-7/16″x1-3/16″ (130x88x30 mm)
Weight 9.7-oz (275g)



Troubleshooting

HDMI or VGA monitor does not
display properly
  • Make sure power, input, and output cables are firmly
    connected to the converter.
  • Make sure the CCTV inputs are turned on.
  • Make sure the video output devices are turned on.
  • Test the cables between the converter and video output
    devices to ensure they are functional.
HDMI Output side LED not lit
  • Ensure relevant connector is firmly connected.
VGA Output side LED not lit
  • Ensure correct mode is selected using the DIP switches.
HD-AHD or HD-CVI outputting B&W video
  • Press both function switches at the same time and reset power.
