Description
*Special Order Product. For Lead Time Call Sales: 631-388-5700*

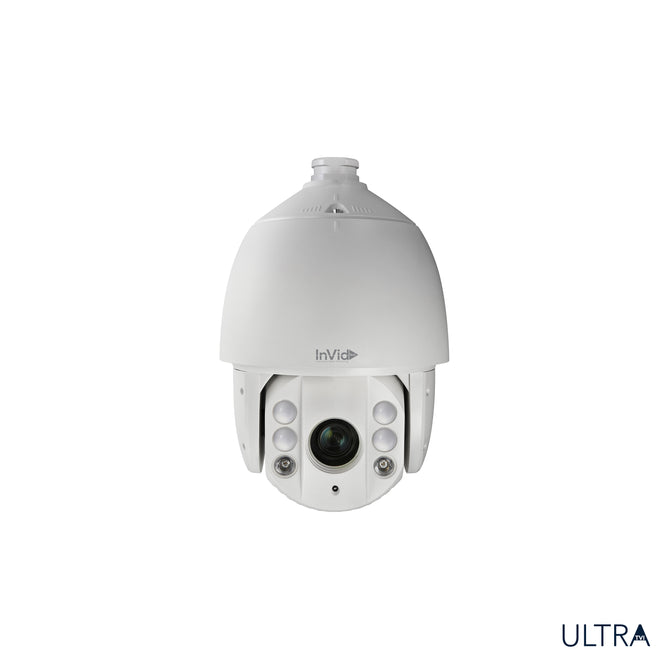

2 Megapixel TVI/Analog, Outdoor PTZ, 25x Zoom, 360' EXIR Range, CVBS, D-WDR, 24VAC
Features
- 2 Megapixel (1920 x 1080) Resolution
- TVI Video Output
- Analog Video Output (CVBS)
- True Day/Night
- 25x Optical Zoom
- 16x Digital Zoom
- Digital WDR
- IP66 Weather Resistant
- Operates to -22° F
|
Image Sensor |
1/3’’ CMOS |
|
Max. Image Resolution |
1920×1080 |
|
Frame Rate |
50Hz:25fps(1920×1080) 60Hz:30fps(1920×1080) |
|
Min. Illumination |
Color: 0.02Lux@(F1.6,AGC ON) B/W: 0.002Lux@(F1.6,AGC ON) 0 lux with IR |
|
HD Video Output |
1 HD-TVI out (up to 1200ft with RG59U 95%) |
|
CVBS Output |
1Vp-p Composite Output(75Ω / BNC) |
|
Wide Dynamic Range |
DWDR |
|
White Balance |
Auto / Manual / ATW / Indoor / Outdoor |
|
AGC |
Auto / Manual |
|
S / N Ratio |
≥ 50dB |
|
3D DNR |
Support |
|
Backlight Compensation |
Support |
|
Shutter Time |
PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
Day & Night |
IR Cut Filter |
|
Optical Zoom |
25X |
|
Digital Zoom |
16x |
|
Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
Focus Model |
Auto / Semiautomatic / Manual |
|
Focal Length |
4-92mm, 25X |
|
Zoom Speed |
Approx.3.0s(Optical Wide-Tele) |
|
Angle of View |
49-2.2 degree(Wide-Tele) |
|
Min. Working Distance |
10-1500mm (Wide-Tele) |
|
Aperture |
F1.6-F3.7 |
|
Pan Range |
360° endless |
|
Pan Speed |
Pan Manual Speed: 0.1°-160°/s, |
|
Pan Speed |
Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s |
|
Tilt Range |
-15°-90° (Auto Flip ) |
|
Tilt Speed |
Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset |
256 |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Pattern |
4 patterns, with the total recording time not less than 10 minutes |
|
Power-off Memory |
Support |
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
|
PTZ Position Display |
On / Off |
|
Preset Freezing |
Support |
|
Scheduled Task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
|
RS-485 communication diagnosis |
Pelco-P, Pelco-D, OSD (UTC control) via DVR |
|
IR Distance |
360 ft |
|
IR Intensity |
Automatically adjusted, depending on the zoom ratio |
|
Monitor Output |
1 turbo HD1080p output |
|
RS-485 Interface |
Half-duplex mode Pelco-P, Pelco-D protocol |
|
Menu Language |
English, Chinese |
|
Power |
24VAC, Max. 30W(IR: 9W, Heater: 6W) |
|
Working Temperature / Humidity |
-22°F-149°F (-30 °C-65°C)(outdoor dome) 90% or less |
|
Protection Level |
IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting |
Various mounting modes optional |
|
Dimensions |
Φ8.66”×13.91” (Φ220×353.4mm) |
|
Weight (approx.) |
9.92 Ibs (4.5kg) |
|
Included Accessories |
Power Supply |
