Description
*Special Order Product. For Lead Time Call Sales: 631-388-5700*

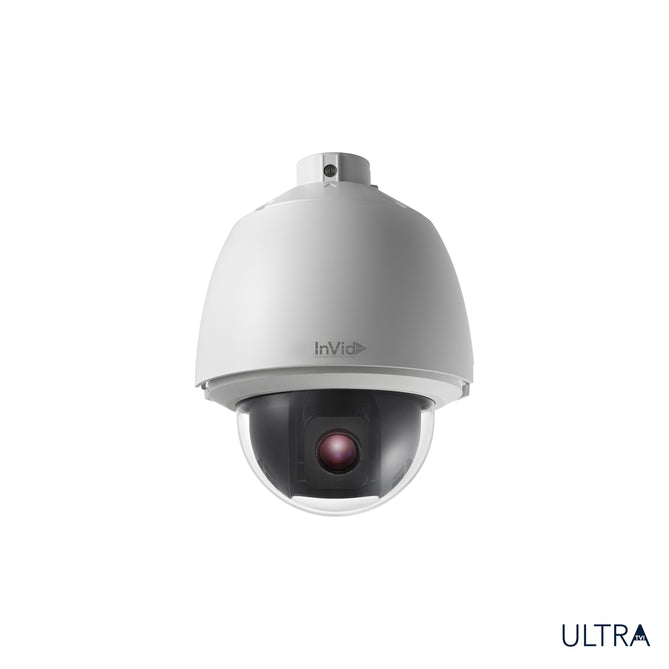

2 Megapixel TVI, Outdoor PTZ, 25x Zoom, CVBS Output
Features
- 2 Megapixel (1920 x 1080) Resolution
- 16x Digital Zoom
- 25x Optical Zoom
- CVBS Video Output
- IP66 Weather Resistant
- Operates to -22° F
- 24VAC
- Free MAC client software available
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform
|
Model Number |
ULT-C2PTZ25X |
|
Video Format |
PAL/NTSC |
|
Frame Rate |
60Hz:30fps(1920×1080) |
|
Image Sensor |
1/2.8” CMOS |
|
Effective Pixels |
1920 x 1080 |
|
Min. Illumination |
Color: 0.005Lux@(F1.6,AGC ON), B/W: 0.001Lux@(F1.6,AGC ON) |
|
Wide Dynamic Range |
120dB |
|
Shutter Speed |
PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
Frame Rate |
60Hz:30fps(1920×1080) |
|
Focal Length |
4 - 120mm, 25X |
|
Alarm I/O |
2/1 |
|
Optical Zoom |
25X |
|
Digital Zoom |
16x |
|
HD Video Output |
Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
|
Park Action |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
|
Scheduled Task |
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
|
Pan Range |
360° endless |
|
Tilt Range |
-5°-90° (Auto Flip ) |
|
Pan Speed |
Pan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s |
|
Tilt Speed |
Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s |
|
Day & Night |
IR Cut Filter |
|
Protection Level |
IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Power |
24VAC, Max. 24W |
|
White Balance |
Auto / Manual / ATW / Indoor / Outdoor |
|
AGC |
Auto / Manual |
|
S / N Ratio |
≥ 50dB |
|
3D DNR |
Support |
|
Backlight Compensation |
Support |
|
Privacy Mask |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
Focus Model |
Auto / Semiautomatic / Manual |
|
Zoom Speed |
Approx. 3.6s (Optical Wide-Tele) |
|
Angle of View |
57.6 - 2.5 degree(Wide-Tele) |
|
Min. Working Distance |
10-1500mm (Wide-Tele) |
|
Aperture |
F1.6 - F3.5 |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset |
256 |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Pattern |
4 patterns, with the total recording time not less than 10 minutes |
|
Power-off Memory |
Support |
|
PTZ Position Display |
On / Off |
|
Preset Freezing |
Support |
|
RS-485 communication diagnosis |
Pelco-P, Pelco-D, OSD (UTC control) via DVR |
|
RS-485 Interface |
Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|
UTC function |
HDCAM_C *Need UTC controller if DVR don’t support UTC function |
|
Operating Temperature |
-22°F-149°F (-30 °C-65°C) |
|
Dimension |
φ8.66”×12.83” |
|
Weight |
6.61 lbs |
