Platinum Tools TNC950DX Net Chaser™ Deluxe Test Kit

The Net Chaser™ Ethernet Speed Certifier & Network Tester offers a complete solution to test and speed certify the data-carrying capabilities of Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting faults in the cable wiring, and ensuring that cables are able to support the speed capabilities of active equipment.
• Speed Certification to IEEE standards 802.3
• Cable testing to TIA568A/B

The Net Chaser’s advanced discovery gives the clearest vision of network layout and interfaces between active components like servers, switches, routers, etc. All the information is collected, stored, and ready for reporting.

Network Testing Features:
• Port Discovery
• Detects PoE per IEEE 802.3af/at with load test for voltage drop and which pairs the PoE is located on (class)
• IPV4 Support
• Ping to a specific IP or URL address
• Ping up to 8 IP targets at a time
• Link light to identify location on a hub/switch/router port
• Verifies DHCP connectivity and DNS
• Discovers CDP and LLDP Protocols
• Network Mapping
• VLAN Discovery
• Traceroute

Cable Testing Features:
• Bit Error Rate Test (BERT), Signal to Noise Ratio (SNR), SKEW
• BERT only test 100Mbps & 1Gbps
• Measures and displays length for each pair in feet or meters
• Improperly terminated cables are clearly displayed on a color graphical wire-mapping display
• Detects Length to Opens & Shorts
• Verifies Continuity for RJ45, and Coax cables
• Saves test results and easily uploaded to a computer
• Tone Generation
• ID Only remotes (Network and Coax) - up to 20 available
• Testing and ID Remotes - up to 8 available

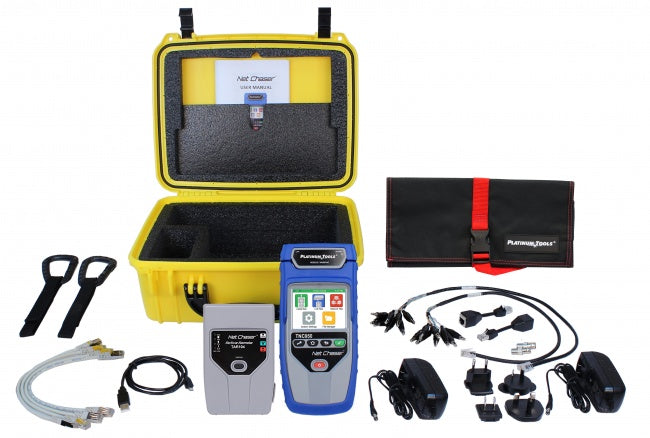

Kit Includes:

• Net Chaser Main Unit
• Net Chaser Active Remote
• Power Supply (2)
• 4 GB SD Card
• Micro USB Cable
• FTP Patch Cable, 12
• RJ45 Port Saver (2)
• Cable Assembly, RJ45 to 8 Way Alligator Clip (2)
• F-Jack to BNC Adapter(2)
• Hanging Strap and Clip (2)
• Hanging Pouch
• Protective Hard Case
