Description

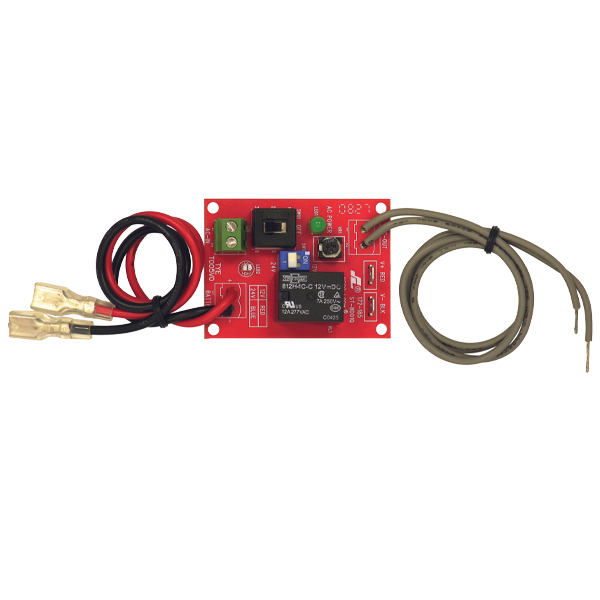

The ENFORCER Low-Voltage Battery Cutoff prevents deep discharge of backup batteries. The ST-BD01Q ties directly into most 12 or 24 VDC power supplies or alarm panels for easy plug-and-play installation. A Master On/Off switch easily connects or disconnects the battery and AC power supply from the control panel.
- Selectable input 12/24VDC
- Adjustable voltage cutoff and restore point
- Master On/Off switch
- Green LED AC power indicator
- Dual-color DC LED indicator
- Includes battery leads and double-sided tape
Specifications
| Relay Contact Rating | 7Amp@30VDC |
| LED Indicators – AC | Green |
| LED Indicators – DC | Red: 12VDC, Blue: 24VDC |
| Connections – AC Input | Terminal block |
| Connections – AC Output | Grey wire leads |
| Connections – DC | Quick-connect terminal (battery side) / On-board male spade terminal |
| Dimensions | 2-3/8″ x 1-3/4″ x 7/8″ (60 x 45 x 22 mm) |
| DC Operating Voltage – 12VDC | 10~14 VDC |
| DC operating voltage – 24VDC | 22~28 VDC |
| AC Input – 12VDC | 12~18 VAC |
| AC Input – 24VDC | 24~30 VAC |
| Adjustable Cutoff Range – 12VDC | 9~10 VDC |
| Adjustable Cutoff Range – 24VDC | 19.2~20.3 VDC |
