Description
- 12/24VDC Trigger Voltage, One 7A Form C SPDT Relay, Breakaway 10-Pack
- Relay modules for any application where relays are required
- Relays are pre-wired to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity

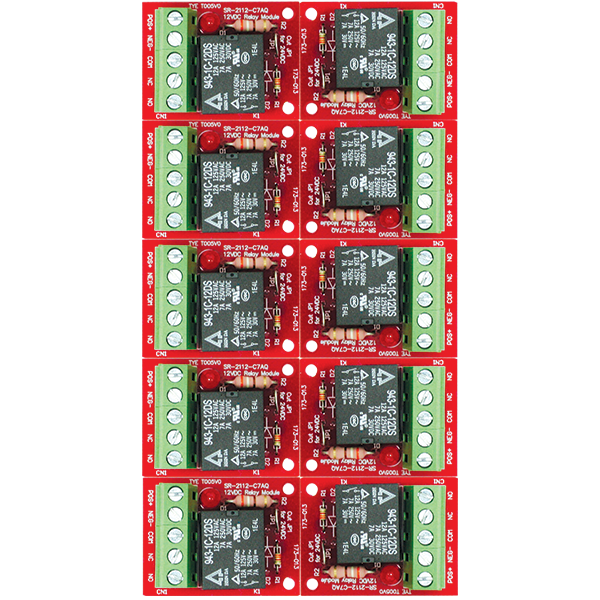

- SR-2112-C7AQ/10: Ships with 10 relay modules on a single board, with easy break-away feature for use as individual modules
Specifications
| Operating Voltage | 12/24 VDC |
| Trigger Voltage | 12/24 VDC |
| Voltage Selection | Jumper |
| Relay Type | SPDT |
| Relay Ratings | 7A |
| No. of Relays | 1 |
| Current Draw | 35mA@12VDC, 40mA@24VDC |
| Dimensions | 1-9/16″ x 1-3/16″ x 3/4″ (40 x 30 x 20 mm) |
| Weight | 0.7-oz (20g) |
