Description

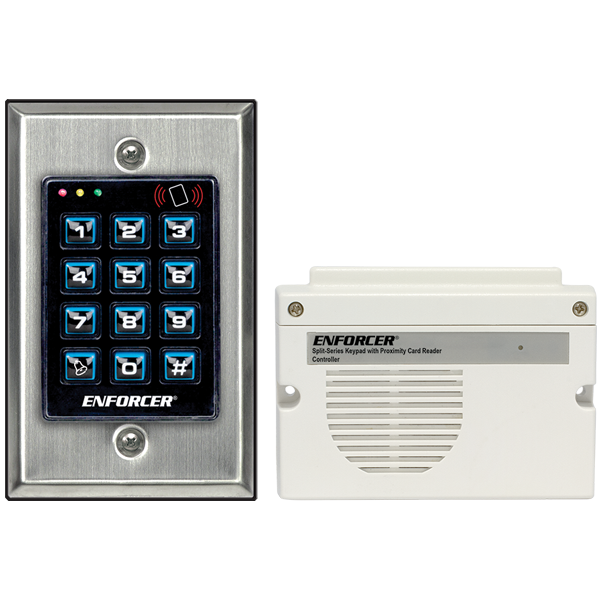

This 3-in-1 (card, code, or both) keypad features rugged vandal-resistant construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements.
- Split series installation for added security – keypad and controller are separate thereby preventing access via keypad tampering
- 12~24 VDC Auto-adjusting operation
- Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
- Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
- Output #1: Form C relay, 5A@24VDC max.
- Output #2: Form C relay, 1A@24VDC max.
- Output #3: Form C relay, 1A@24VDC max.
- Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
- Tamper output: N.C. Dry contact, 50mA@24VDC max.
- Keypad illuminates when a button is pressed; backlight can be programmable for FULL or AUTO in standby mode
- Built-in door chime
- Built in current limited (750mA) power source for keypad for added security
- Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
- Keypad mounts to a standard single-gang back box (surface-mount back box included)
- All features are programmed directly from the keypad: No need for an external programmer
- EEPROM Memory protects programmed information in case of power loss
- Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
- Programmable egress input with optional warning alarm and delayed egress
- Door sensor input for anti-tailgating operation
- Interlocking input for connecting to a second keypad for mantrap applications
- Simple three wire connection between keypad and controller
Specifications
| Type | Split-Series Keypad with Proximity Card Reader |
| Operating Voltage | 12~24 VDC |
| Current Draw – Standby | 88mA@12VDC |
| Current Draw – Keypress | 115mA@12VDC |
| Current Draw – Output 1 Active | 115mA@12VDC |
| Current Draw – Output 1 & 2 Active | 128mA@12VDC |
| Current Draw – Output 1, 2 & 3 Active | 138mA@12VDC |
| Current Draw – Total Max | 220mA@12VDC |
| Output 1 | Form C – 5A@24VDC |
| Output 2 | Form C – 1A@24VDC |
| Output 3 | Form C – 1A@24VDC |
| Output – Alarm | 100mA@24VDC |
| Output – Key Active | 100mA@24VDC |
| Output – Duress | 100mA@24VDC |
| Output – Interlock | 100mA@24VDC |
| Output- Tamper | 50mA@24VDC |
| Input – Egress | N.O. Ground |
| Input – Door Sensor | N.C. Ground |
| Input – Door Inhibit | N.O. Ground |
| Input – Doorbell | N.O. Ground |
| Input – Tamper | N.C. Ground |
| Proximity Reader Frequency | 125kHz (EM125) |
| Proximity Reader Sensing Distance | 1-1/2″ (38mm) |
| Operating Temperature | 4°~158°F (-20°~70°C) |
| Operating Humidity | 5~95% (non-condensing) |
| Dimensions | Keypad – 4-5/8″x2-7/8″x1-1/2″ (117x73x38 mm), Controller – 3-7/16″x4-3/4″x1-1/4″ (87x120x32 mm) |
| Weight | Keypad – 6.3-oz (180g), Controller – 8.8-oz (250g) |
