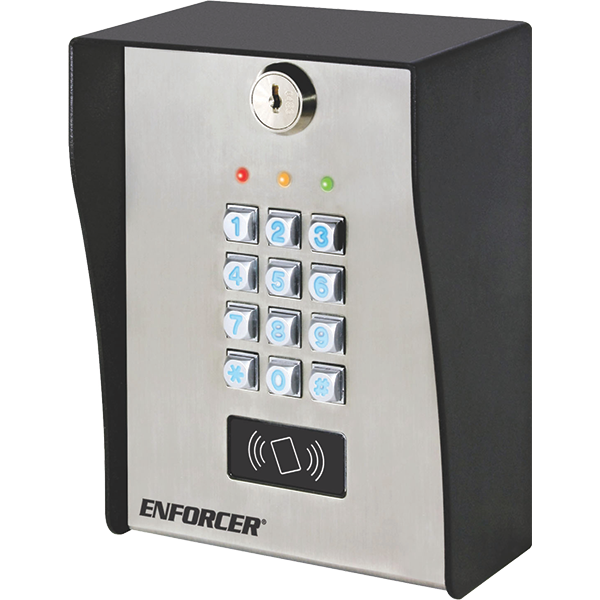

Seco-Larm SK-3133-PPQ Heavy-Duty Outdoor Access Control Keypad with Proximity Reader

Seco-LarmSKU: SK-3133-PPQ

Our offices will be closed April 22-30th
Please expect slight shipping delays. Questions? Chat with us below
Price:
Sale price$159.17
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The ENFORCER SK-3133-SPQ features rugged construction with a heavy-duty stainless-steel faceplate and a coated steel backing to withstand the elements.

  • Rugged construction: Heavy-duty stainless-steel faceplate with a coated steel backing
  • Built-in proximity card reader
  • 12~24 VAC/VDC Operation, auto-adjusting
  • IP66 Weatherproof rating
  • Up to 1,000 user codes and/or proximity cards for output #1, 100 for output #2, and 100 for output #3
  • Up to 50 temporary visitor codes
  • Egress input lets users exit without keying in the code
  • Vandal resistant, suitable for wall, post, or gooseneck mounting



Specifications

Type Heavy-Duty, Outdoor, Stand-Alone Keypad
Operating Voltage 12~24 VAC/VDC
Current Draw – Standby 55mA@12VDC
Current Draw- Relays Active 220mA@12VDC
Relay Output- #1 5A@24VDC
Relay Output- #2 1A@24VDC
Relay Output- #3 1A@24VDC
IP Rating Weatherproof IP66
Egress Inputs N.O. Ground (P.B)
Operating Temperature -4º~158º F (-20º~70º C)
Dimensions 5-1/4″x7-1/16″x3-3/8″ (133x180x85 mm)
Weight 3-lb 12-oz (1.7kg)



Troubleshooting

User code doesn’t work
  • Make sure you programmed a User Code instead of a Super User or Common User Code.
  • Try deleting the super user code and common user code then reprogramming the user code.
Master programming code doesn’t work
  • See the DAP process
Keypad constantly beeps on power-up
  • This is a normal operation. Press 12# to prematurely stop the beeping.
