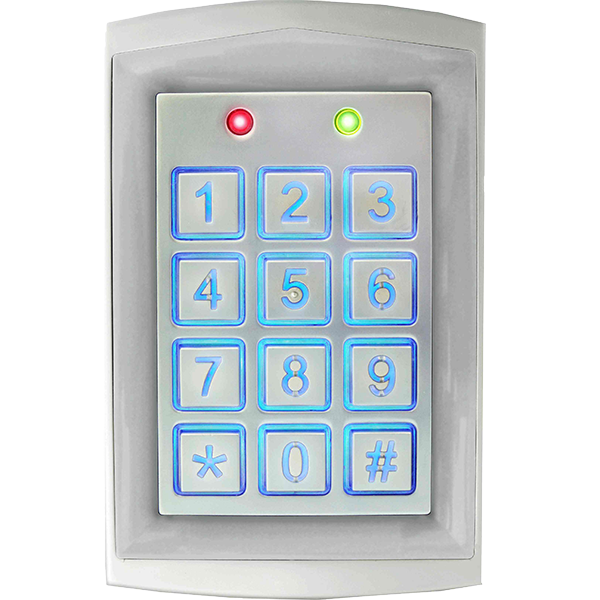

Description
- 12~24 VAC/VDC operation
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
- 2 Form C relays, each rated 1 Amp @ 30VDC
- Each relay has programmable output time from 1~99 seconds or toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- Two multi-colored status LEDs
- Able to mount to a single-gang back box
- All features are programmed directly from the keypad – no need for an external programmer
- EEPROM memory protects programmed information in case of power loss
- Optical tamper for added security
- Circuitry is potted with epoxy for outdoor use
- IP65 Weatherproof rating, rugged aluminum construction
Specifications
Type | Sealed Housing Weatherproof Outdoor Digital Access Keypad |
Number of User Codes | Up to 1,010 |
Operating Voltage | 12~24 VAC/VDC |
Current Draw – Standby | 64mA@12VDC |
Current Draw- Active | 92~120mA@12VDC |
Relay Outputs (2) | 1A@30VDC, Form C, NO/COM/NC |
IP Rating | Weatherproof IP65 |
Egress Inputs | 2, N.O. Ground |
Door Sensor Input | N.C. Ground |
Tamper Sensor | Optical |
Keypad LED Life | 60,000 hours (over 6.8 years) |
Operating Temperature | -4°~122° F (-20°~50° C) |
Dimensions | 4-3/4″x3″x7/8″ (120x76x22 mm) |
Weight | 1-lb 2-oz (510g) |
