Authorized Invid Reseller

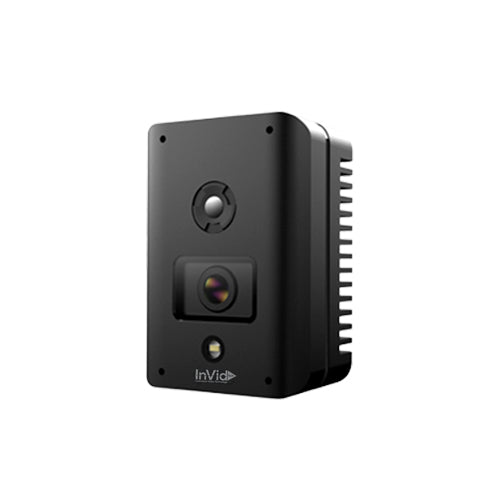

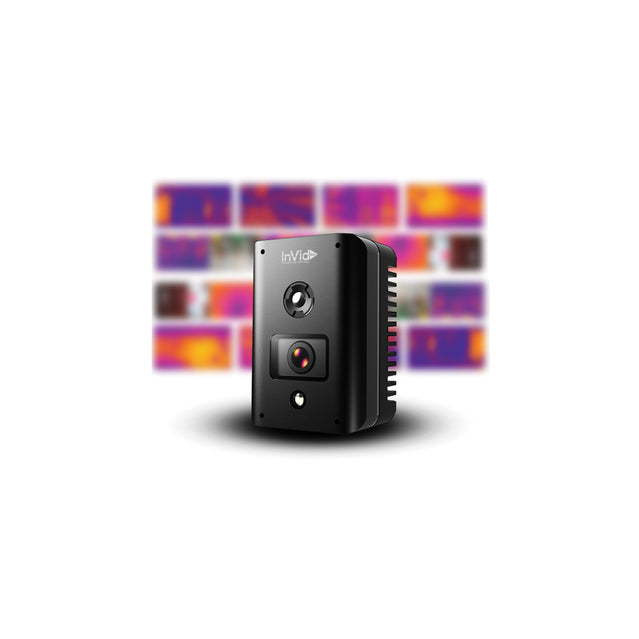

Invid SEC-THERMALBISPEC Thermal Imaging Camera

InvidSKU: SEC-THERMALBISPEC

Price:
Sale price$2,217.60
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

Thermal Imaging Camera

Features

  • On-board temp-detection algorithm
  • Effective pixels 256×192
  • Sensitivity ≤65mK
  • Wide-angle lens
  • Support 3 temperature measurement rule types (Spot, Line, Area)
  • 17 color control
  • DVE image enhance
  • Multi-bracket easy to install

Thermal Camera


Detector Type

Uncooled IRFPA Microbolometer

Effective Pixels

256(H) ×192(V)

Thermal Sensitivity (NETD)

≤65mK @F1.0, 300K

Spectral Range

8~14um

Image Setting

Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI

Color Palettes

Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes

Lens Type

Fixed

Focus Control

Manual Focus

F No.

F1.0

Angle of View

H: 95°, V:75°

Visible Camera


Image Sensor

1/2.8" Sony CMOS

Effective Resolution

1920 (H)×1080(V)

Shutter Speed

1/5 ~ 1/20,000s

Min. Illumination

Color: 0.01Lux @(F1.2, AGC ON),  B/W: 0.1Lux

S/N Ratio

More than 55dB

W-LED

1pcs

Max Aperture

F2.0

Angle of View

H: 136.2°, V: 77.3°

Focus Control

Fixed

Video and Audio


Frame Rate

Main Stream:

Thermal: D1 @25/30fps

Visible: 1920×1080/1280×720 @25/30fps

Sub Stream:

Thermal: CIF @25/30fps

Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Thermal: 100Kbps~6Mbps

Visible:

main stream: 500Kbps~10Mbps;

sub stream: 100Kbps~6Kbps

Digital Zoom

16x

Mirror

Support

Defog

Support

Motion Detection

Support

Privacy Masking

Support

DVE Image Enhance

Off / On (4 Area, Rectangle)

Intelligence


Intelligent Functions

Motion detection, Disk alarm, I/O alarm, Temperature alarm

IVS

Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed

Temperature  Detection


Temperature Detection

Support 3 temperature measurement rule types (Spot, Line, Area)

Temperature Alarm

Over temperature alarm, Temperature difference  alarm

Accuracy

±2℃ / ±2%

Response Time

≤30ms

Temperature measurement range

-40°F~302°F (-40°C~150°C)

Temperature display mode

Temperature target >5℃, Display absolute temperature value, Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average)

Network


Ethernet

RJ-45 (10/100Base-T)

Protocols:

IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP

Interoperability

ONVIF, CGI, SDK

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

Local PC for instant recording, Micro SD card 128GB

Web Viewer

<IE11, Chrome, Firefox

Web Language

English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

Interface


Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio

N/A

Alarm

1ch Alarm Input, 1ch Alarm Output

RS485

Support

USB Interface

Support

BNC Output

Support

Reset Button

Support(Built-in)

General


Power Supply

DC12V ±10%

Power Consumption

Max 10W

Working Temperature

-4°F~140°F (-20°C~60°C)

Storage Conditions

0~ 90% RH

Certifications

CE /FCC

Ingress Protection

IP66

Casing

Metal

Dimensions

2.48 × 1.69 × 3.62 inch (63 × 43 × 92mm)

Net Weight

.99lbs (450g)
