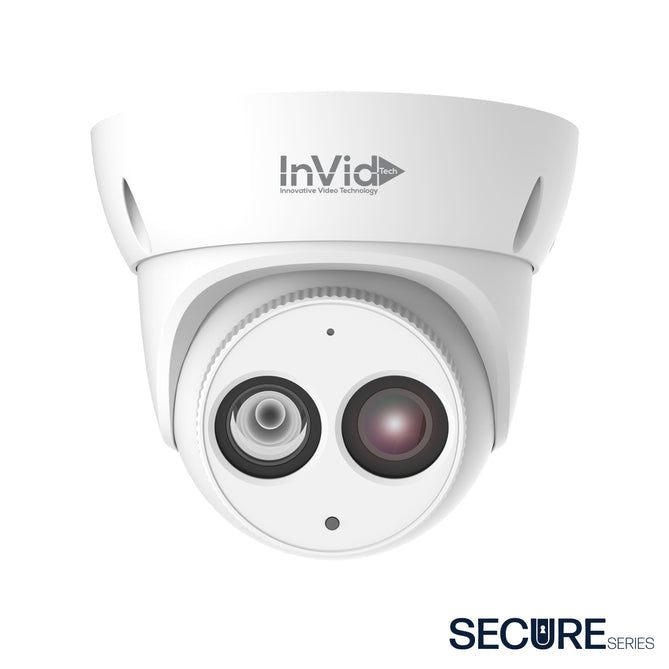

Invid SEC-P8TXIR28NH 8 Megapixel Turret, 2.8mm

InvidSKU: SEC-P8TXIR28NH

Price:
Sale price$176.00
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

8 Megapixel IP Plug & Play, Outdoor Turret, 98’ IR Range, WDR, PoE/12VDC

Features

  • 8 Megapixel (3840 x 2160) Resolution
  • Fixed Lens
  • H.265, H.264, MJPEG Compression
  • True WDR
  • 98’ IR Range
  • IP Plug & Play
  • True Plug & Play with Ultra, Paramont, & Vision
  • Built-in Junction Box
  • IP66 Weather Resistant
  • Withstand up to -40F Operation
  • ONVIF
  • 12VDC/PoE Operation
  • Free Central Management Software (CMS) to manage multiple units & sites from a single platform through the NVR
  • Free iOS & Android Apps for Smart Phones & Tablets
  • Free Mac Client

Camera


Image Sensor

1/2.8” Progressive Scan CMOS

Effective Pixels

3840(H)×2160(V)

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. illumination

Color: 0.05 Lux @ (F1.2, AGC ON) , B/W: 0 Lux @

(IR LED ON)

S/N Ratio

55dB

Day/Night

Auto(ICR)

True WDR

Support

IR Range

Up to 98 ft (30 m)

IR On/Off Control

Auto/Manual

Pan/Tilt/Rotation  Range

Pan: 0˚ ~ 360˚, Tilt: 0˚ ~ 90˚, Rotation: 0˚ ~ 360˚

Lens


Lens Type

Fixed Focus

Iris

Fixed Iris

Focal Length

2.8 mm

F Number

F2.0

Angle of View

H: 102°, V: 55.6°

Video


Compression

H.265/H.264/MJPEG

Max. Resolution

8MP (3840×2160)

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 3840×2160, 3072×2048, 2592×1520, 1920×1080 @ 20fps Stream2: D1, VGA, CIF, QVGA @ 25/30fps Stream3: VGA, CIF, QVGA @ 25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 500kbps~16Mbps  Stream2: 10kbps~6Mbps Stream3: 10kbps~3Mbps

Image Enhancement

HLC / BLC / Anti-shake / WDR

White Balance

Support

Gain Control

Auto/Manual

Noise Reduction

2D/3D DNR

Smart IR

Support

Mirror

Support

Region of Interest

Support

Motion Detection

Support

Privacy Masking

Support

Network


Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF Profile S/G/Q/T, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Management Software

InVid View

Interface


Ethernet

1 Ethernet (10/100 Base-T) RJ-45 Connector

Reset Button

Support

Storage

Built-in Micro SD slot, up to 256G

Electrical


Power Supply

DC12V/POE (IEEE 802.3af)

Power Consumption

Max 6 W

Operating Temperature

-40°F ~ 131°F (-40°C ~ 55°C )

Operating Humidity

Less than 90% RH

Ingress Protection

IP66

Certifications

CE/FCC

Casing

Metal

Dimensions

φ4.65” × 4.06” (φ118 × 103mm)

Net Weight

1.19 lb  (0.54 kg)
