Description

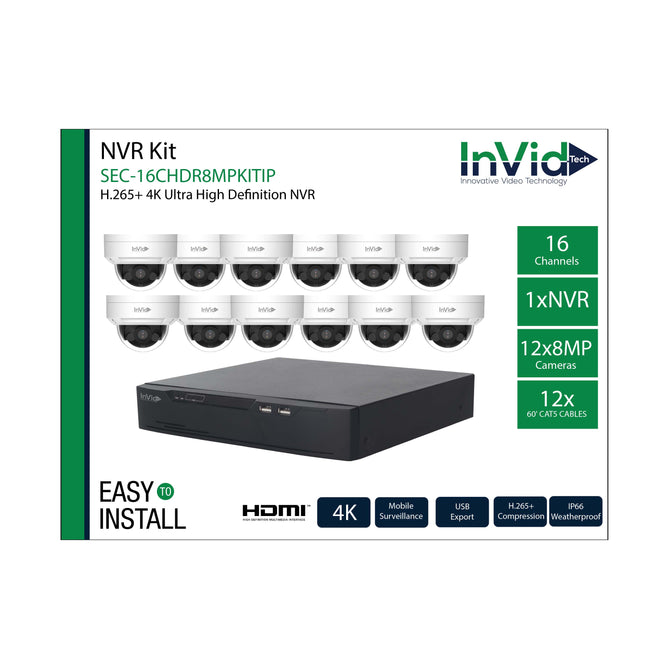

16CH NVR W/ 12 8MP CAMERAS 12 CABLES
Camera Features
- 8 Megapixel (3840 x 2160) Resolution
- Fixed Lens
- H.265, H.264, MJPEG Compression
- True WDR
- 98’ IR Range
- IP Plug & PlayTrue Plug & Play With Ultra, Paramont & Vision
- IP66 Weatherproof
- Withstand up to -40F Operation
- IK10 Vandal Resistant
- ONVIF
- 12VDC/PoE Operation
- Free Central Management Software (CMS) to manage multiple units & sites from a single platform through the NVR
- Free iOS & Android Apps for Smart Phones &Tablets
- Free Mac Client
NVR Features
- 16 Channel with 16 Plug & Play Ports for easy camera setup PoE
- (Power Over Ethernet) available on all ports
- Up to 8 Megapixel Resolution Recording
- 160 Mbs Bit Rate Input
- Works with ONVIF or other supported IP cameras
- Local HDMI main monitor output with 4K Support
- Local VGA main monitor output up to 1080p
- H.265/H.265+/H.264/H.264+ video compression
- Free Central Management Software (CMS)
Camera |
|
|
Image Sensor |
1/2.8” Progressive Scan CMOS |
|
Effective Pixels |
3840(H)×2160(V) |
|
Electronic Shutter |
Auto/Manual, 1/5 ~ 1/20,000s |
|
Min. illumination |
Color: 0.05 Lux @ (F1.2, AGC ON) , B/W: 0 Lux @ (IR LED ON) |
|
S/N Ratio |
55dB |
|
Day/Night |
Auto(ICR) |
|
True WDR |
Support |
|
IR Range |
Up to 98 ft (30 m) |
|
IR On/Off Control |
Auto/Manual |
|
Pan/Tilt/Rotation Range |
Pan: 0˚ ~ 350˚, Tilt: 0˚ ~ 75˚, Rotation: ±90˚ |
Lens |
|
|
Lens Type |
Fixed Focus |
|
Iris |
Fixed Iris |
|
Focal Length |
2.8 mm |
|
F Number |
F2.0 |
|
Angle of View |
H: 102°, V: 55.6° |
|
Focus Control |
Fixed |
Video |
|
|
Compression |
H.265/H.264/MJPEG |
|
Max. Resolution |
8MP (3840×2160) |
|
Streaming Capability |
3 Streams |
|
Stream/Frame Rate |
Stream1: 3840×2160, 3072×2048, 2592×1520, 1920×1080 @ 20fps |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
Stream1: 500kbps~16Mbps Stream2: 10kbps~6Mbps Stream3: 10kbps~3Mbps |
|
Image Enhancement |
HLC / BLC / Anti-shake / WDR |
|
White Balance |
Support |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Mirror |
Support |
|
Region of Interest |
Support |
|
Motion Detection |
Support |
|
Privacy Masking |
Support |
Network |
|
|
Protocols |
IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL |
|
Interoperability |
ONVIF Profile S/G/Q/T, SDK, CGI |
|
Streaming Method |
Unicast |
|
Max. User Access |
10 Users |
|
Web Viewer |
<IE11, Chrome, Firefox, Microsoft Edge |
|
Management Software |
InVid View |
Interface |
|
|
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Reset Button |
Support |
|
Storage |
Built-in Micro SD slot, up to 256G |
Electrical |
|
|
Power Supply |
DC12V/POE (IEEE 802.3af) |
|
Power Consumption |
Max 5.5W |
|
Operating Temperature |
-40°F ~ 131°F (-40°C ~ 55°C ) |
|
Operating Humidity |
Less than 90% RH |
|
Ingress Protection |
IP67, IK10 |
|
Certifications |
CE/FCC |
|
Casing |
Metal |
|
Dimensions |
φ4.33” × 3.36” (φ110 × 85.4mm) |
|
Net Weight |
.93 lb (0.42 kg) |
NVR Specs
System |
|
|
Main Processor |
Dual-core embedded processor |
|
Operating System |
Embedded LINUX |
Video and Audio |
|
|
IP Camera Input |
16 Channel |
|
Audio I/O |
1/1, RCA |
|
Two-way Talk |
Yes |
Display |
|
|
Interface |
1 HDMI, 1 VGA |
|
Resolution |
HDMI: 3840×2160,1920×1080,1440×900, 1280×1024, VGA: 1920×1080, 1280×1024, 1280×720 |
|
Decoding Capacity |
1ch 8MP/4ch 1080P@30fps |
|
Multi-screen Display |
1/4/9/16 |
Recording |
|
|
Compression |
H.265+/ H.265/H.264+/H.264 |
|
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1&etc. |
|
Record Rate |
160Mbps |
|
Bit Rate |
100Kbps ~ 6Mbps Per Channel |
|
Record Mode |
Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in |
|
Record Interval |
Post-record: 30 ~ 60 sec |
|
Video Detection and Alarm |
|
|
Trigger Events |
Recording, Buzzer, Push message, Pop up message. |
|
Video Detection |
Motion Detection, Video Loss, Camera Tamper |
|
Alarm In/Out |
8/2 |
|
Playback and Backup |
|
|
Sync Playback |
16/9/4/1 |
|
Search Mode |
Time /Date, Alarm, Picture grid, Event |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
|
Backup Mode |
USB Device |
|
Network |
|
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP |
|
Max. User |
Access 9 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF, SDK, CGI |
|
Storage |
|
|
Internal HDD |
2 SATA Ports, up to 8TB for each HDD |
|
eSATA |
N/A |
|
Interface |
|
|
Interface |
1 RJ-45 port (10/100/1000Mbps) |
|
PoE Interface |
16ch 100Mbps, IEEE 802.3af |
|
PoE Max Power |
120W |
|
USB |
2 ports (USB 2.0 x2) |
|
General |
|
|
Power Supply |
AC100~240V |
|
Power Consumption |
< 5W (without HDD) |
|
Operating Conditions |
14 °F ~ 122 °F (-10 °C ~ 50 °C) |
|
Storage Conditions |
Less than 90% RH |
|
Certifications |
CE/FCC |
|
Dimensions |
14.64” x 12.22” x 1.83” (372×310.5×46.5mm) |
|
Net Weight |
4.62lb (2.1kg) No disk |
