Description

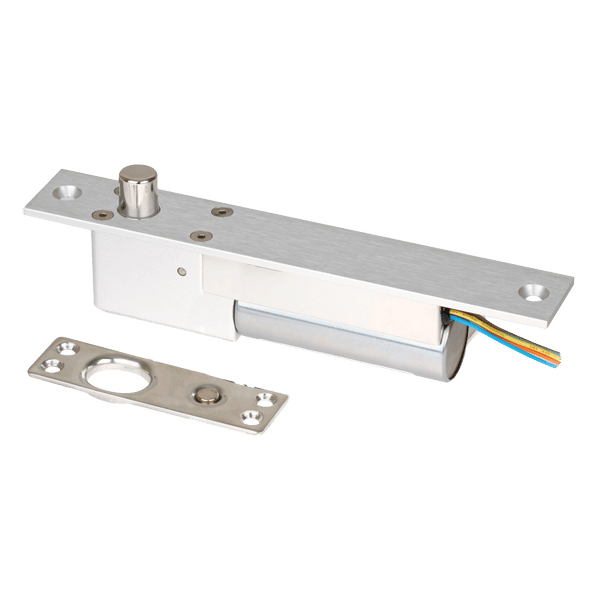

SECO-LARM Electric Deadbolts add concealed deadbolt security with the added convenience of electrical operation. They are suitable for most wood or hollow metal doors.* Not recommended for use with wooden door frames.
- Adds concealed deadbolt security to most wood or hollow metal doors,* with the added convenience of electrical operation
- Fail-safe operation (unlocks if power is lost)
- Status sensor (Door open/close monitor): SPDT, 500mA@12VDC(NO/NC/COM)
- Adjustable door lock delay timer (0, 2.5, 5, or 9 sec)
- Control wire allows release without cutting unit’s power
- Magnetic switch determines door position for positive locking
- Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out
- Use with an optional digital keypad for high security without a key
- Easily connects to SECO-LARM’s Electronic Keypads
- Suitable for office-type applications
- Shallow design for use with most metal door jambs
- No limiting installation orientation
- Powered by a solenoid
- Stainless steel for strength and long life. Operatiing lifetime: 1,000,000 operations
- Plastic material Tefulon Polymonochlorotrifluoethylene
- Power 12/24 VDC (auto sensing), 900mA@12VDC / 440mA@24VDC on activation, 340mA@12VDC / 180mA@24VDC standby
- Over-current protection 1.5A
- Stainless steel bolt, 5/8” diameter, 5/8” throw
- Lock body (faceplate) dimensions – 77/8“x15/16” (200×32 mm)
- Lock body (cavity) dimensions – 53/4“x11/8“x11/2” (145x28x38 mm)
- Strike plate dimensions – 39/16“x1″x11/8” (90x25x33 mm)
- Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm)
Specifications
Operation | Fail-safe |
Current Draw- Standby | 340mA@12VDC/180mA@24VDC |
Current Draw- Active | 900mA@12VDC/440mA@24VDC |
Status Sensor | SPDT, 250mA @ 12VDC (NO/NC/COM) |
Operating Voltage | 12/24 VDC |
Adjustable Delay Timer | 0, 2.5, 5, 9 seconds |
Weight | 1-lb 13-oz (0.8kg) |
Troubleshooting
Problem | Possible Cause | Solutions: |
Deadbolt does not activate when the door closes. | The sensor in the lock body is too far from the magnet in the strike plate. | • Try adjusting the strike plate, lock body position, or shims. |
Deadbolt activates when the door is closed, but does not lock the door | Deadbolt may not be properly going into the deadbolt hole in the door. | • Make sure the deadbolt is going into the hole and not hitting the strike plate. If not, you must reposition the strike plate. • If the deadbolt is going into the hole, it may be hitting the bottom of the hole (if it is in a wooden door). In this case, drill a deeper hole |
How to reset unit. | • When testing, if necessary, reset the unit by grounding the orange wire momentarily. | |
For any other problems. | • Replace the unit, and test again. A problem unit can also be substituted for a working unit in another door frame to see if it works there. |
