Description

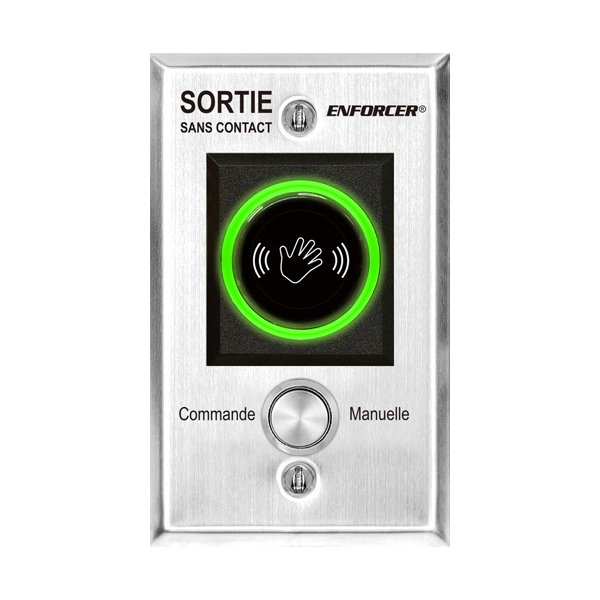

The ENFORCER contactless aperture request detector uses infrared technology to allow the user to exit a protected place by an access control system simply with a hand gesture. As the function is contactless, this detector is ideal for hospitals, medical centers, laboratories, clean rooms, schools, factories, and offices. Added a manual cancel button for the SD-927PKC-NFVQ.
- Detection range up to 2-3/8″~8″ (6~20 cm)
- Single stainless steel plate
- 3A relay, adjustable by 0.5~30 seconds, rocker or as long as the hand is near the sensor
- Screwless terminal block with fast connection
- LED ring illuminated detector for easy identification.

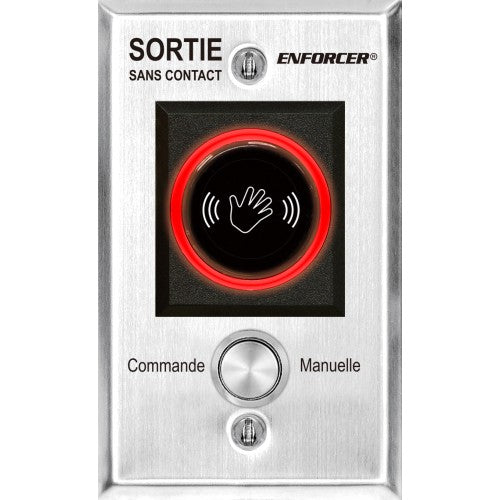

- Selectable two-tone LED ring (from red to green, or from green to red) to indicate that the detector has been triggered.
- Adding a manual cancel button as an auxiliary device for the sensoror
Specifications
Operating Voltage | 12~24 VAC/VDC |
Current Draw | 120mA@12VDC |
Relay Type | Form C dry contact, 3A@24VDC |
Override Button – Switching capacity | 3A@24VDC |
Override Button – Mechanical life | 500,000 cycles |
Response Time | 10ms |
LEDs – Standby | Red* |
LEDs – Triggered | Green* |
Output Time | Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered |
Range | Adjustable, 2-3/8″~8″ (6-20 cm) |
Operating Temperature | -4°~131° F (-20°~55° C) |
Weight | 3.9-oz (110g) |
