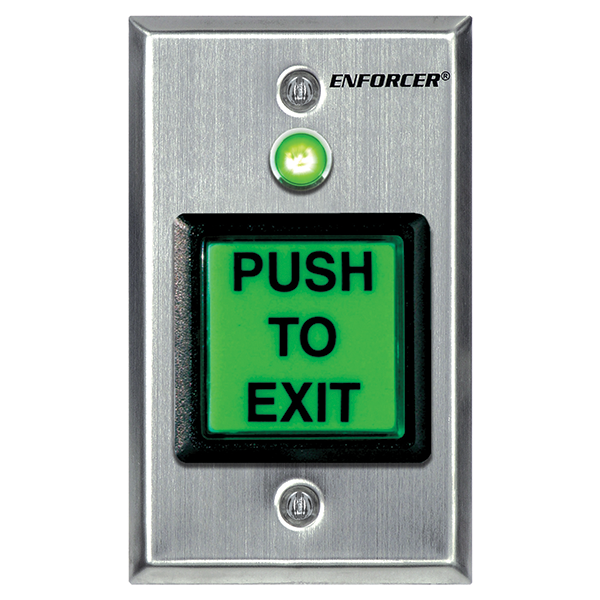

Seco-Larm SD-7623-GSTQ Illuminated RTE Plate with Dual-Color LED and Timer

Seco-LarmSKU: SD-7623-GSTQ

Sale price$47.27
Usually ships within 3-5 business days

Prefer to order over the phone?
Our team of experts is a phone call away!
Call us at 718-435-2800

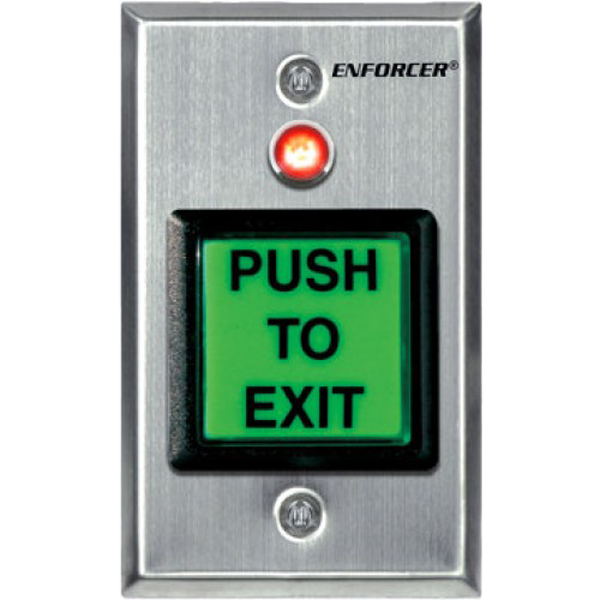

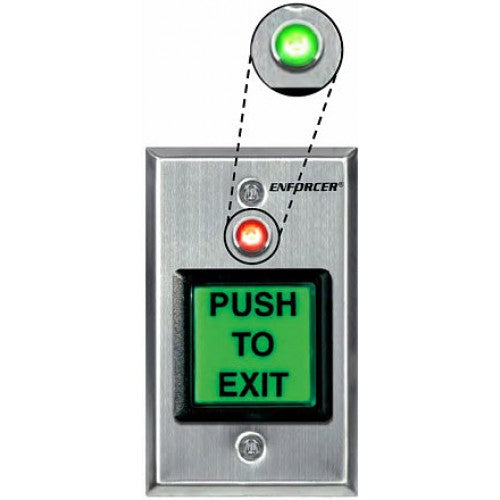

  • Dual-color green/red LED can be wired for a range of uses, e.g.:
    – Switching ON/OFF or changing color when button is pressed
    – Changing color when door unlocks
    – Always steady ON green or red
  • Large illuminated pushbutton with caption “PUSH TO EXIT”
  • Stainless-steel single-gang plate
  • 12/24 VDC Operation
  • Rated 50A@24VAC
  • Pushbutton LED replacement bulb included
  • Pushbutton LED gives over 50,000 hours of illumination
  • Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
  • Includes colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
  • Built-in timer with output adjustable from 1~180 seconds
  • Buzzer output for audible status



Operating Voltage 12 or 24VDC
Current Draw 3A@24VDC
Built-in Timer Yes
Operating Temperature -40°~167° F (-40°~75° C)
LED Status Indicator Yes
Material Brushed stainless

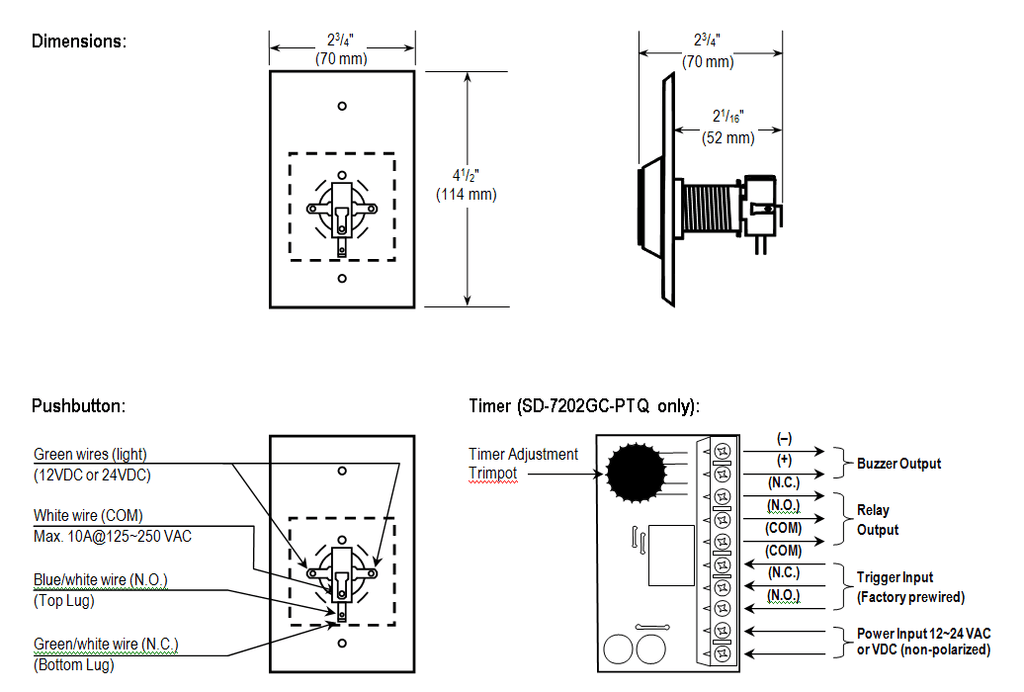

Dimensions 4-1/2” x 2-3/4” x 2-3/4” (11.4 x 70 X 70 mm)
Weight 5.1-oz (144g)
