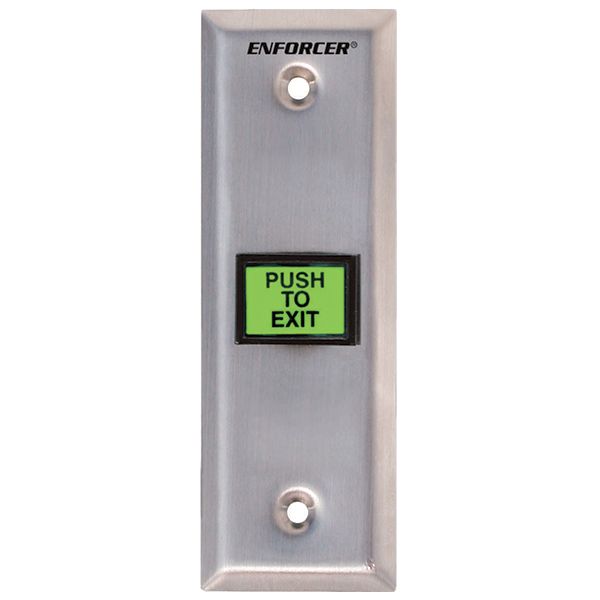

Seco-Larm SD-7103GC-PTQ Slimline LED-Illuminated RTE Wall Plate, Built-in Timer

Seco-LarmSKU: SD-7103GC-PTQ

Price:
Sale price$43.40
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

  • SPDT Switch rated 3A@24VDC
  • CE and UL approved switch
  • Stainless-steel slimline plate
  • Six plug-in terminals
  • Six color-coded, 12″, AWG 18 wire leads with easy-to-attach spade lugs for fast installation
  • Plastic terminal protector for dividing individual terminals
  • Mechanical lifetime 2,000,000 operations
  • LED (12V, 35,000-hour life)
  • 680Ω, 0.5W resistor for 24V LED operation included

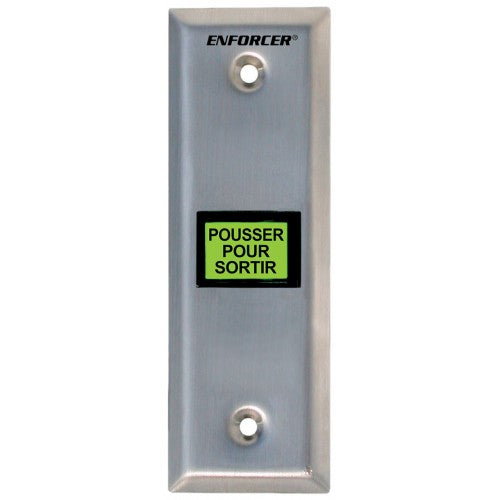

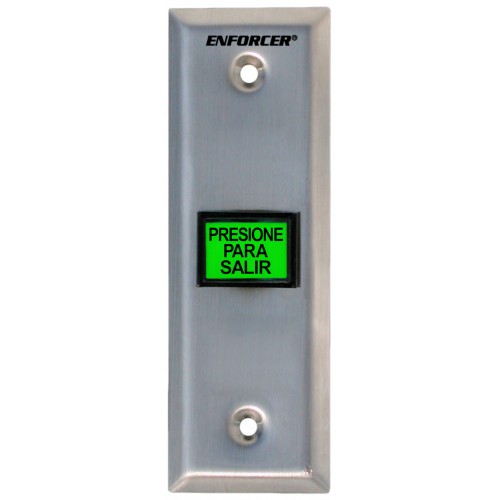

  • Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
  • Built-in timer (1~180 sec.)
  • Buzzer output for audio status



Specifications

Contact Rating SPDT Switch rated 3A@24VDC
Built-in Timer Yes (1~180 sec.)
Material Stainless-steel

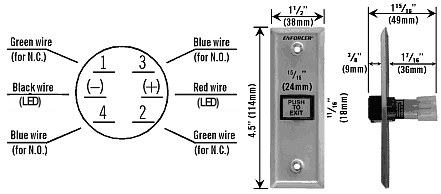

Dimensions 4-1/2”x1-1/2″x1-15/16″ (114x38x49mm)
