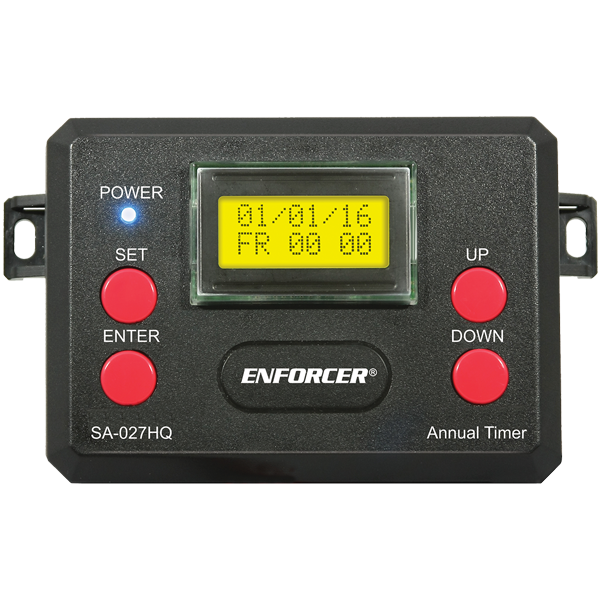

Seco-Larm SA-027HQ 365-Day Annual Timer with Two Relay Outputs

Seco-LarmSKU: SA-027HQ

Price:
Sale price$73.91
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The ENFORCER SA-027HQ Annual Timer can be programmed to operate two relays 24 hours a day, over the course of an entire year. These relays can be used to control devices in many applications such as security, access control, lighting, and environmental control. The two Form C relays can each be programmed to operate in shunt or momentary mode for up to 50 unique events. Each event can be programmed on a weekly or daily schedule. Block programming allows events to be repeated on consecutive days. 10 Programmable holidays disable the timer for a single day, or for the same day every year.

  • Two N.O. or N.C. Form C relays 10A@14VDC
  • Each relay can be programmed for 50 events, for a total of 100 individual programmable events
  • The 100 programmable events can be set weekly, daily, or hourly, over the course of an entire year
  • Password protection can be turned ON or OFF
  • One egress input per relay (2 total)
  • Block programming allows events to be repeated on consecutive days
  • First-person-in function interrupts the normal operation of the annual timer
  • Event outputs can be programmed disable, ON, OFF, shunt, or momentary (1~99 seconds)
  • 10 Programmable holidays
  • Can be programmed for password protection
  • Tandem mode allows both relays to operate simultaneously
  • EEPROM Memory for safe data protection in case of power failure
  • Built-in clock backup battery
  • Built-in backup battery charger for external backup battery use
  • Compensates for leap years
  • Can be set for Standard or Daylight Saving Time
  • Alphanumeric backlit LCD display for easy programming



Specifications

Operating Voltage 12~24 VDC/VAC
Number of Relays 2
Relay Rating 10A@14VDC
Current Draw 100mA@12VDC
Number of Programmable Events 50 for each relay, 100 total
Blue LED On- Power is ON, OFF- Power is OFF
Number of Programmable Holidays 10
Battery Charging Current 90mA
Security Code 4-digits, numeric, ON/OFF
Dimensions 4-3/16″ x 3-1/16″ x 1-1/4″ (107 x 78 x 31 mm)
Weight 5.8-oz (164g)
