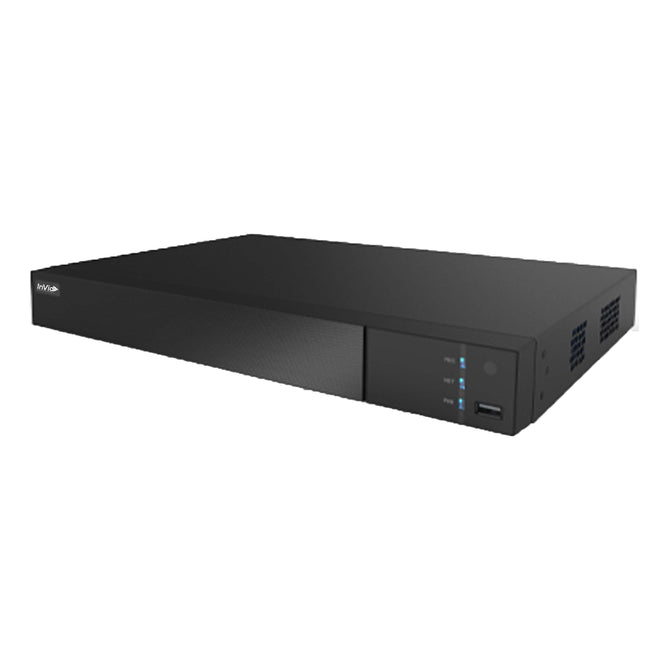

Invid PS1A-DECODER Decoder

InvidSKU: PS1A-DECODER

Our offices will be closed April 22-30th
Please expect slight shipping delays. Questions? Chat with us below
Price:
Sale price$1,107.04
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

4CH Decoder for PS1A-ENTERPRISE,  4 HDMI inputs for up to 144 total views, 36 views per monitor

Model

PS1A-DECODER

OS

Embedded Linux

Compression Format

H.265 HP/MP/BP, H.264 HP/MP/BP

Video Input

HDMI×1:1920×1080 / 1600×1200/1680×1050/1440×900/1400×1050/ 1366×768/1280 ×1024/1280×960/1280×800/1280×720/1152×864/1024×768/800×600

Video Output

HDMI×4:3840×2160(odd number ports supported) /1920×1080/1280×1024


VGA×4:1920×1080/1280×1024; BNC×4:CVBS output

Frame Rate

1-50fps/CH (PAL), 1-60fps/CH (NTSC)

Decoding Resolution

8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, WD1, D1, CIF

Decoding Capability

8CH 8MP@30fps or 16 CH 4MP@30fps or 32CH 1080P@30fps or

64CH 720P@30fps or 128CH D1 or lower

Screen Display Mode

1/4/9/16/25/36

Screen Splicing Mode

1×2, 2×1, 2×2

Audio Output

RCA×4

Talkback

Audio input×1, audio output×1, 3.5mm audio interface (level: 2.0Vp-p,1KΩ)

Network Interface

Gigabit Ethernet × 2,   load balancing and hot standby

Alarm Interface

Alarm input×8, alarm output×8

Serial Ports

RS 485×1, RS232×1

USB Interface

USB3.0×1, USB2.0×1

Power Consumption

DC12V

Dimensions (WxDxH)

15 x 10.6 x 1.8 in (380×268×45 mm)

Weight

4.4 lb (2KG)

Working Environment

-4°F ~ 122°F (-20°C~50°C); RH Humidity: 5%~95%( non-condensing)

Decoding Control


Supports live view and playback decoding

1/4/9/16/25/36 screen display mode

Splicing, window opening, roaming

View cameras or camera groups in sequence

Stream Mode


A&V streams can be acquired actively and passively

A&V streams can be directly acquired from Paramont IPC/DVR/NVR by SDK private protocol

A&V streams can be acquired form Paramont CMS Client or encoding devices by RTSP/ RTP protocol

A&V streams can be acquired from IPC by ONVIF protocol Device Management

Supports multi-level device control (master-slave mode)

A maximum of 64 decoders can be manageable

Operation & Maintenance


Supports device search

Supports WEB client access, configuration and management

Supports time zone, time and date settings

Supports data prot and HTTP port settings

Supports data backup and restoration

Supports remote reboot &
one-button reset

Supports online and U-disk upgrade

Supports dual gigabit Ethernet ports, load balancing
