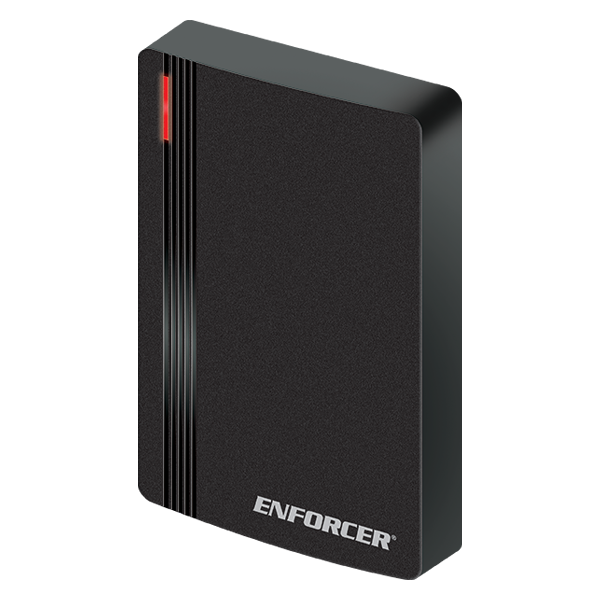

Description
• 9~24 VDC Operation
• Low current draw – 50mA max.
• Built-in buzzer for external alarm input
• Multicolor status LED
• EM 125 kHz
• 10 User proximity cards included
• Weatherproof – IP66
• Extreme cold tolerance to -40° F (-40° C)
• Wiegand output reader – EM 26 bits
• Sturdy black ABS plastic housing
Specifications
Operating Voltage | 9~24 VDC |
Current Draw – Standby | 20mA@12VDC |
Current Draw – Active | 50mA@12VDC (max.) |
Outputs – Wiegand | EM – 26 bits |
Card type | 125kHz EM |
Card read range | 0~2″ (0~5 cm) |
IP Rating | Weatherproof IP66 |
Enclosure material | Black ABS plastic |
Operating temperature | -40°~140° F (-40°~60° C) |
Operating humidity | 10~98% non-condensing |
Dimensions | 2-15/16″x4-3/4″x13/16″ (75x120x20 mm) |
Weight | 5.5-oz (155g) |
