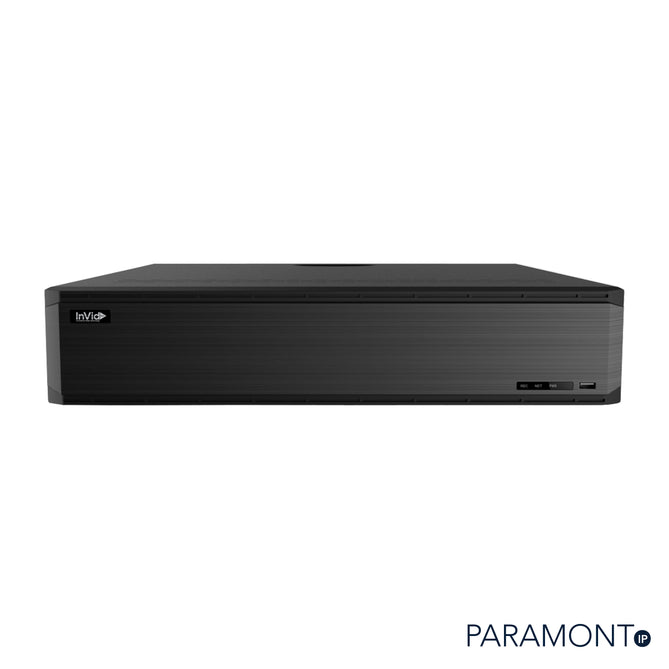

Invid PN3A-64F 64 Ch NVR, 8 HD Bays

Model

PN3A-64F

System

Embedded Linux

Video

IP Video Input

64 CH

Incoming Bandwidth

640 Mbps

Outgoing Bandwidth

Display Priority: 128Mbps Network Priority: 640Mbps

IP Video Input
Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 024/960P/

720P/960H/D1/CIF

Output

HDMI1 : 3840 × 2160@60fps / 3840 × 2160@30fps/

1920 × 1080 / 1280 × 1024 / 1024 × 768

VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768

HDMI3: 1920 × 1080 / 1280 × 1024 / 1024 × 768

HDMI4: 1920 × 1080 / 1280 × 1024 / 1024 × 768

Main Multi-screen  Display

1/4/6/8/9/13/16/25/32/36/64

Dual Multi-Screen Display

Network Mode: HDMI2-32 HDMI3-16 HDMI4-16

Display Mode: HDMI2-32  HDMI3-32 HDMI4-32

Compression

H.265S/H.265+/H.265/H.264

Audio

Network Input

64 CH IPC audio input

2-way Audio

RCA × 1

Local Output

RCA × 1

HDMI Audio Output

Yes

Compression

G.711(U/A)

Record

Record Stream

Dual stream recording

Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 x 1024/960P/ 720P/960H/D1/CIF

Frame Rate

NTSC:30fps; PAL:25fps

Mode

Manual/timed/motion/sensor/POS/AI recording

Playback

Simultaneous

Playback

Max 16 CH

Search

Time slice / time / event / tag / smart search

Smart Search

Highlighted color to display the camera record in a certain period of time, different colors refers to different record events

Decoding Capability

Live/ Playback

1CH 12MP/4CH 5MP/9CH 720P/16CH 720P, 16Ch+ @D1

Alarm

Mode

Manual, sensor,  motion,  exception, smart  events

Input

24 CH local alarm input; IPC alarm input supported

Output

8 CH

Triggering

Record, snap, preset, e-mail, etc.

Face

Face Detection

Performance
(AI by IPC)

64CH

Face Detection

Performance
(AI by Device ONVIF)

4CH

Face Recognition
Performance

(for non-True Face Rec cameras)

16CH

Comparison
Capability

36 pictures / second

Face Picture

Database

32 libraries 10000 Face Pictures

Face Picture Search

Search by picture is supported

Database
Management

Add, modify, delete and search face pictures

Face Picture Adding

Add face pictures through APP, WEB and external import

External face
picture enrollment

Resolution:128 x 128~1920 x1080

Size:≤ 70KB

Format:jpg&jpeg

Face Picture
Comparison

Support allow list, block list and stranger match alarm

Face Track

Yes

Map of Face Track

Reolution:≤ 2560 x 1920

Size:≤ 512KB

Format : jpg&jpeg

Statistic Graph of Face Information

Bar graph (Exportable)

Statistic Mode of Face Information

Statistics by day, week, month, quarter as well as customized time period

Other Functions

Fisheye Support

Supports Local Monitor, Web Browser

(IE or Plugin Pro Required) and Mobile App

Network

Interface

RJ 45 10 / 100 / 1000 Mbps × 2

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, ONVIF, etc

Client Connection

Max. 20 users access

Mobile Device

OS

iOS, Andriod

Storage

HDD

SATA × 8, max 18TB per HDD;

E-SATA

E-SATA × 1 (Max 18TB, Record only)

RAID Type

RAID0, 1, 5, 6, 10

Backup

Local Backup

USB, USB to HDD

Network Backup

YES

External Interface

USB

USB 2.0 × 2; USB3.0 × 1

Remote Controller

Included

RS 485

Yes (full-duplex), connect to PTZ

RS 232

Yes

Reset

Yes

Others

Power Supply

ATX 300W

Consumption

≤ 50W ( without HDD )

Dimensions
( W × D × H )

17.2x19 x 5.6 in (437 × 483 × 143 mm)

Working

Environment

5°F ~ 122°F (-15 °C ~ 50 °C), 10% ~ 90% humidity

Certificate

CE, FCC

Environment
Protection

Directive EU RoHS, WEEE(2012/19/EU) ,

Directive 94/62/EC and REACH(EC1907/2006)
