Description

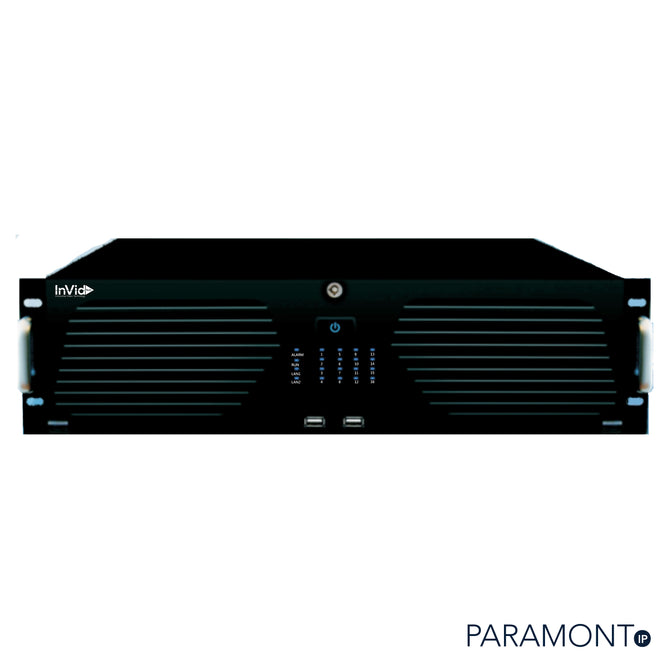

128Ch NVR, 640Mbps, (2) NIC Cards, 16 HD Bays, 4K
Features
- Up to 12 Megapixel Resolution Recording
- 640 Mbps Bit Rate Input
- Supports up to 16 channel simultaneous playback
- Outputs - 1 HDMI (4K), 3 HDMI (1080P), VGA (1080p)
- True Facial Recognition Capable with Compatible Camera
- Smart Analytic Support
- H.265S/ H.265+/ H.265/ H.264
- 16 Hard Drive Bays
- Free Central Management Software (CMS)
- Free iOS & Android Apps for Smart Phones & Tablets
- Free MAC Client
Model |
PN3A-128F |
System |
Embedded Linux |
Video |
|
IP Video Input |
128 CH |
Incoming Bandwidth |
640 Mbps |
Outgoing Bandwidth |
Display Priority: 128Mbps Network Priority: 640Mbps |
IP Video Input |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 024/960P/720P/960H/D1/CIF |
Output |
HDMI1 : 3840 × 2160@60fps / 3840 × 2160@30fps/ 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI3: 1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI4: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
Main Multi-screen Display |
1/4/6/8/9/13/16/25/32/36/64 |
Dual Multi-Screen Display |
Network Mode: HDMI2-32 HDMI3-16 HDMI4-16 |
Display Mode: HDMI2-32 HDMI3-32 HDMI4-32 |
|
Compression |
H.265S/H.265+/H.265/H.264 |
Audio |
|
Network Input |
128 CH IPC audio input |
2-way Audio |
RCA × 1 |
Local Output |
RCA × 1 |
HDMI Audio Output |
Yes |
Compression |
G.711(U/A) |
Record |
|
Record Stream |
Dual stream recording |
Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280 x 1024/960P/ 720P/960H/D1/CIF |
Frame Rate |
NTSC:30fps; PAL:25fps |
Mode |
Manual/timed/motion/sensor/POS/AI recording |
Playback |
|
Simultaneous Playback |
Max 16 CH |
Search |
Time slice / time / event / tag / smart search |
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
Decoding Capability |
|
Live/ Playback |
1CH 12MP/4CH 5MP/9CH 720P/16CH 720P, 16Ch+ @D1 |
Alarm |
|
Mode |
Manual, sensor, motion, exception, smart events |
Input |
24 CH local alarm input; IPC alarm input supported |
Output |
8 CH |
Triggering |
Record, snap, preset, e-mail, etc. |
Face |
|
Face Detection Performance |
128CH |
Face Detection Performance |
4CH |
Face Recognition (for non-True Face Rec cameras) |
16CH |
Comparison |
36 pictures / second |
Face Picture |
"32 libraries |
Face Picture Search |
Search by picture is supported |
Database |
Add, modify, delete and search face pictures |
Face Picture Adding |
Add face pictures through APP, WEB and external import |
External face |
Resolution:128 x 128~1920 x1080 Size:≤ 70KB Format:jpg&jpeg |
Face Picture |
Support allow list, block list and stranger match alarm |
Face Track |
YES |
Map of Face Track |
Reolution:≤ 2560 x 1920 Size:≤ 512KB Format : jpg&jpeg |
Statistic Graph of Face Information |
Bar graph (Exportable) |
Statistic Mode of Face Information |
Statistics by day, week, month, quarter as well as customized time period |
Other Functions |
|
Fisheye Support |
Supports Local Monitor, Web Browser (IE or Plugin Pro Required) and Mobile App |
Network |
|
Interface |
RJ 45 10 / 100 / 1000 Mbps × 2 |
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, ONVIF, etc |
Client Connection |
Max. 20 users access |
Mobile Device |
|
OS |
iOS, Andriod |
Storage |
|
HDD |
SATA × 16, max 18TB per HDD; |
E-SATA |
E-SATA × 1 (Max 18TB, Record only) |
RAID Type |
RAID0, 1, 5, 6, 10 |
Backup |
|
Local Backup |
USB, USB to HDD |
Network Backup |
YES |
External Interface |
|
USB |
USB 2.0 × 2; USB3.0 × 1 |
Remote Controller |
Included |
RS 485 |
Yes (full-duplex), connect to PTZ |
RS 232 |
Yes |
Reset |
Yes |
Others |
|
Power Supply |
ATX 300W |
Consumption |
≤ 50W ( without HDD ) |
Dimensions ( W×D×H ) |
17.2 x19 x 5.6 in (437 × 483 × 143 mm) |
Working Environment |
5°F ~ 122°F (-15 °C ~ 50 °C), 10% ~ 90% humidity |
Certificate |
CE, FCC |
Environment |
Directive EU RoHS, WEEE(2012/19/EU) , Directive 94/62/EC and REACH(EC1907/2006) |
