Description

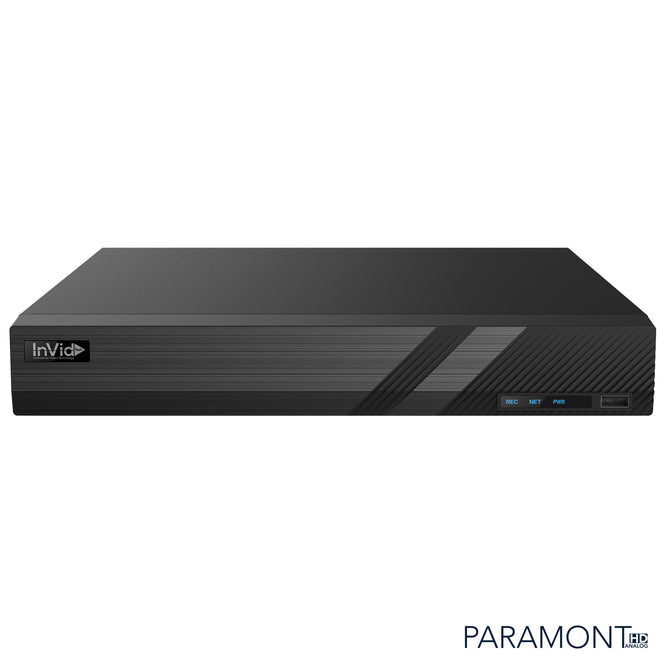

8 Ch + 4 Bonus IP Ch (Up to 12 Cameras Total) Universal Port Recorder, 1 HD Bay, Lite DVR
Features
- TVI/AHD/CVI: 5MP/4MP/1080p/720/WD1
- 4 Bonus IP Channels - Up to 5 Megapixel
- Total Max IP Input: 12 (Including Bonus IPC)
- H.264/H.265 Video Compression
- True P2P Connectivity with QR Code Connect
- Simultaneous HDMI/VGA up to 1080p Resolution
- CVBS Main or Spot Monitor
- Supports up to 8 Channel Simultaneous Playback
- 1 Hard Drive Bay
- Free Central Management Software (CMS)
- Free MAC Client
System |
PD1B-8NH |
|
OS |
Embedded Linux |
Video |
|
|
Analog Video Input |
BNC × 8 |
|
BNC interface (1.0Vp-p; 75Ω) |
|
|
TVI/AHD/CVI : 5MP/4MP/1080P/720P/WD1 (live) |
|
|
IP Video Input |
4CH |
|
Up to 5MP@30fps |
|
|
Total Input |
12CH |
|
Output |
HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
|
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
|
|
BNC × 1 : CVBS ( used as the main or spot output ) |
|
|
Compression |
H.264/H.265 |
|
Multi-screen Display |
1 /4/6/8/9/13/16 |
Audio |
|
|
Input |
RCA × 8 |
|
Output |
RCA × 1 (linear, 600Ω) |
|
Two-way audio |
Take up channel one audio input |
|
Compression |
G.711(U/A) |
Record |
|
|
Resolution |
5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 |
|
Frame Rate |
Analog Channel: 5MP Lite@10fps (PAL / NTSC) (1280 x 1936) 4MP Lite/1080P@12fps(PAL) / 15fps (NTSC) 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) |
|
Bit Rate |
32Kbps ~ 4Mbps |
|
Mode |
Manual, timer, motion, smart event |
Playback |
|
|
Playback |
8CH |
|
Search |
Time slice / time / event / tag search |
|
Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
Alarm |
|
|
Mode |
Manual, motion, exception, smart event |
|
Input |
8CH |
|
Output |
2CH |
Network |
|
|
Interface |
RJ 45 100Mbps × 1 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
|
Incoming Bandwidth |
32Mbps |
|
Outgoing Bandwidth |
60Mbps |
|
Client Connection |
Max. 10 users access |
MobileDevice |
|
|
OS |
iOS, Andriod |
Storage |
|
|
HDD |
SATA×1, up to 18TB; E-SATA×1 up to 18TB (Record Only) |
Backup |
|
|
Local Backup |
USB, USB to HDD (Max 1TB) |
|
Network Backup |
Yes |
Port |
|
|
RS 485 |
Yes (half-duplex), connect to PTZ or keyboard |
|
USB |
USB 2.0 × 2 |
|
Remote Controller |
Included |
Others |
|
|
Power Supply |
DC12V/3A |
|
Consumption |
≤ 10W ( without HDD ) |
|
Dimensions ( W × D × H ) |
11.8 x 9.8 x 1.7 in (300 × 249 × 45mm) |
|
Working Environment |
14°F ~122°F (-10~50°C), 10%~90% (humidity) |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Directive EU RoHS, WEEE, REACH |
