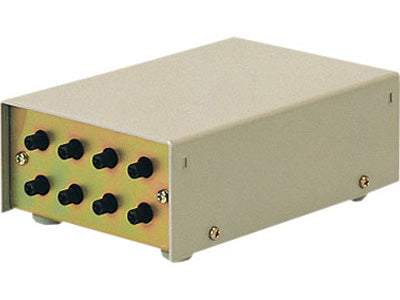

Description
FEATURES
- Provides paging/talkback from TD-H handsets to an overhead PA system
- Single or multi-zones
- Music source connection, automatically mutes when paging
SPECS
Output: 5KΩ, 1.5V max.
Amp. Input: AUX or PHONO 100K~500KΩ, 0.12V~0.5V
Music Input: 17KΩ, 0.3V, 1KHz for full output
Tuner Output: Audio output range: 100mV~1.2V, 10KΩ or less
Talkback Gain: 40dB, 1KHz at max. volume
Environmental Noise: Less than 80dB (phono)
Wire Type:
Adaptor to Amplifier: 2-cond., overall shield - use Aiphone #822202
Adaptor to Master Station: 3-cond.,overall shield - use Aiphone #822203
