Description

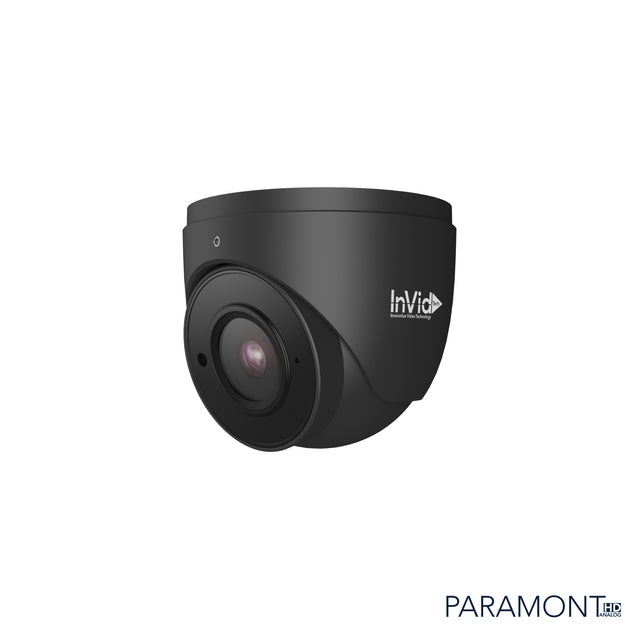

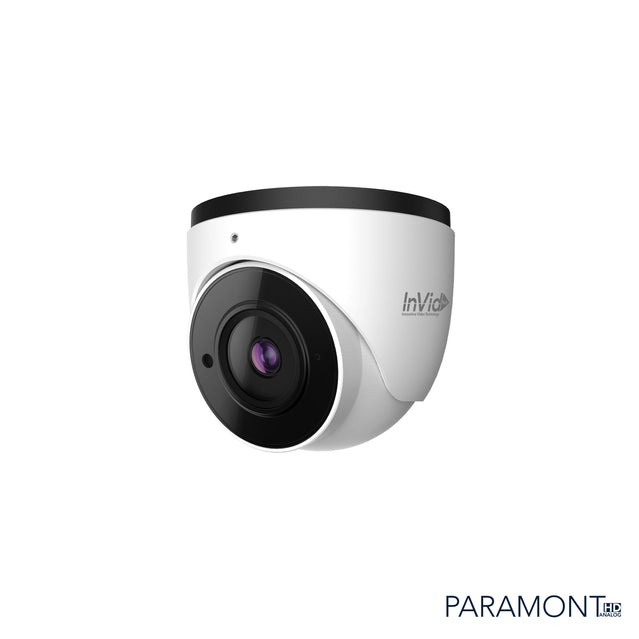

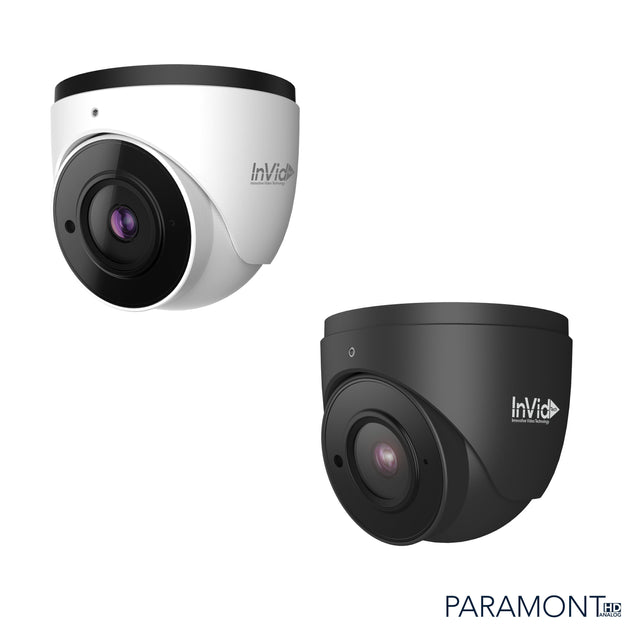

2 Megapixel TVI/AHD/CVI/Analog, Outdoor Turret Housing, 65’ IR Range, DWDR, 12VDC, with Dip Switch
Features
- 2 Megapixel (1920 x 1080) Resolution

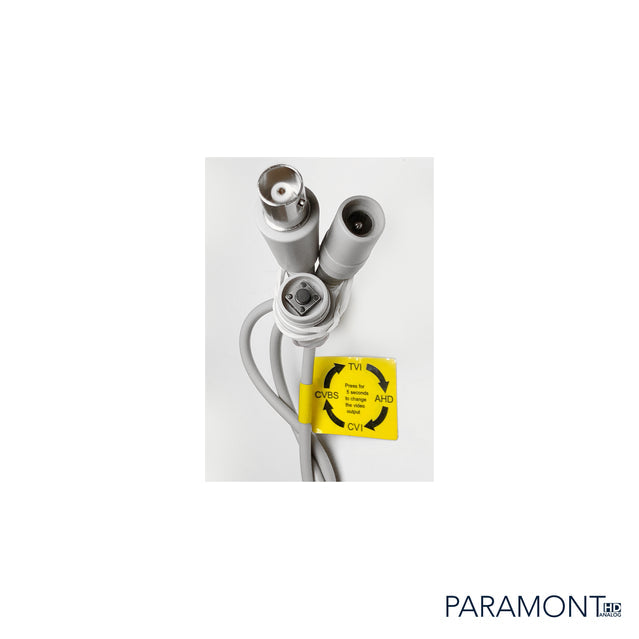

- Field Selectable TVI/AHD/CVI/Analog with Dip Switch on Camera
- True Day/Night
- Digital WDR
- 65’ IR Range
- Up The Cable (UTC) Function
- IP66 Weather Resistant
- 12VDC Only Operation
- Through InVid Tech DVR: Free App, CMS & MAC Client
Camera |
PAR-TURRET28A |
|
Image Sensor |
1/2.9" CMOS |
|
Resolution |
1920 x 1080 |
|
Image System |
PAL / NTSC |
|
Auto Iris |
Fixed Iris |
|
Min Illumination |
0 Lux (IR ON) |
|
Lens |
2.8mm |
|
Field of View |
Horizontal: 89.6 Vertical: 58.4 |
|
Lens Mount |
M123 |
|
IR Distance |
65 ft |
|
Environmental |
IP66 |
|
Video Output |
TVI/AHD/CVI/Analog |
|
Image Size |
1080P (1920 x 1080) |
|
Frame Rate |
30fps (60Hz), 25fps (50Hz) |
|
Angle Adjustment |
Any angle |
Functions |
|
|
Screen Display |
2 languages supported, Chinese/English |
|
Function Control |
OSD |
|
Day & Night |
Yes (ICR) |
|
BLC & HLC |
Yes |
|
WDR |
Digital WDR |
|
Digital NR |
Yes |
|
Defect Correction |
Live defective pixel correction |
|
S/N Ratio |
> 52dB (AGC off) |
|
Electronic Shutter |
1/50s ~ 1/100000s (PAL); 1/60 ~ 1/00000s (NTSC) |
|
AGC |
Yes |
|
White Balance |
ATW, AWC→SET, Manual |
|
Advanced Image |
Sharpness, saturation, brightness, etc. are adjustable |
Other |
|
|
Power Supply |
DC12V (±10%) |
|
Working Environment |
-4°~122°F (-20°C~50°C) 10% ~90% humidity |
|
Dimensions |
Φ3.42" x 4.25" (Φ87x108) |
