Description

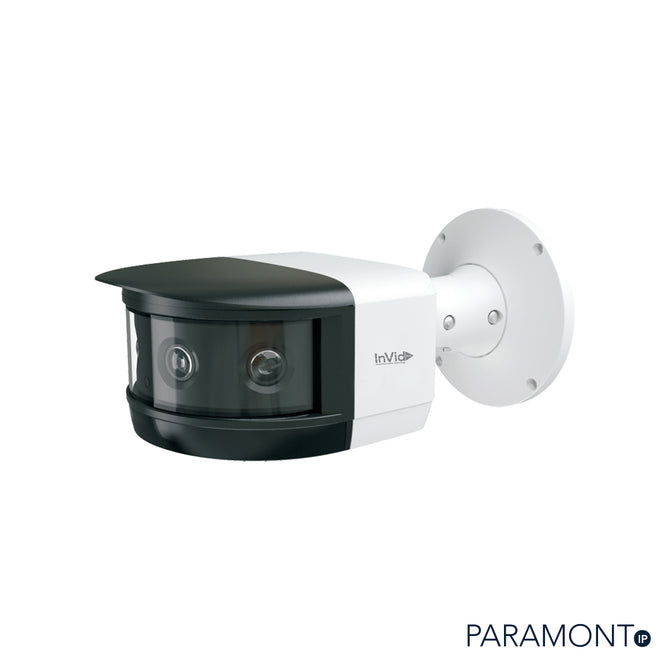

8 Megapixel IP Plug & Play Outdoor Bullet with 4 Fixed Lenses, WDR, 65’ IR Range, SD Card Slot, PoE/DC12V
Features
-
8 Megapixel (4096 x 1800) Resolution
- InVid-Starlight 180° Panoramic Camera with 4 Lens
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- Supports Native Chrome/Edge Use
- H.265/H.264/MJPEG Compression
- 30 FPS Recording and Live
- Smart IR up to 65’
- SD Card Local Storage, 256GB
- Audio Input/Output
- IK10 Vandal Resistant
- IP67 Weather Resistant
- 12VDC/PoE Operation
- ONVIF
- Supports Native Chrome/EDGE Use
- Free MAC client software available to manage your system from your Apple computer
- Free Central Management Software (CMS) to manage multiple units & sites
- from a single platform
- Free iOS & Android Apps for Smart Phones & Tablets
Camera |
PAR-P8PANMULTI-AI |
|
Image Sensor |
1/2.8“ Progressive Scan CMOS Image sensoe x 4 |
|
Mini. Illumination |
Color: 0.008Lux @ (F2.0,AGC ON); B/W:0.008Lux @(F2.0,AGC ON);0Lux with IR |
|
Image setting |
Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser |
|
Shutter Speed |
1/1 s – 1/10,000 s |
|
White Balance |
Auto/Manual/Indoor/Outdoor |
|
Gain |
Auto/Manual |
|
Day & Night |
IR Cut filter |
|
Digital Zoom |
16x |
|
Privacy Mask |
4 Programmable privacy masks |
|
3D DNR |
Auto /Manual |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
D-WDR |
|
Defog |
Electronic |
|
EIS |
Yes |
|
Regional Exposure |
No |
|
Picture overlay |
Logo picture could be overlaid on video |
Lens |
|
|
Focus length |
3.2mm lens x 4 |
|
Aperture |
F2.0 |
|
FOV |
Panoramic image: Horizontal FOV:180°;Vertical FOV: 85° |
|
Working distance |
1.0m ~ INF |
IR |
|
|
IR Range |
65 ft (20m) radius |
|
Smart IR |
Yes |
Network |
|
|
Max Resolution |
4096x1800@25/30fps |
|
Main stream |
4096 x 1800, 3840 × 1680 , 2880 × 1264(1~30fps) |
|
Sub stream: |
2048 × 896, 704 × 320(1~30fps) |
|
Third stream: |
704 × 320 ( 1~30fps ) |
|
SVC |
Yes |
|
Video compression |
Smart H.265/H.264/MJPEG |
|
Audio compression |
G.711 A/U |
|
Protocols |
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP,RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE |
|
Simultaneous live view |
Up to 6 Users |
|
User / Host |
Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
|
Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
Smart Features |
|
|
Basic event |
Motion detection (panorama and original modes support), video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) |
|
Face recognition |
Max 50 human faces (mask) per second (default off) (V 5.01 and later supports) |
|
Face comparison |
Default off |
|
Smart Detection |
Intrusion detection, line crossing detection, region entrance detection, region exiting detection target counting based on True AI Human and Vehicle Classification |
|
Alarm Linkage |
Upload to FTP/Memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
System Integration |
|
|
Alarm Interface |
1CH alarm input; 1CH alarm output |
|
Audio Interface |
1CH audio input, 2 to 2.4v[p-p] 1kΩ±10%; 1CH audio output (line out), impedance: 600Ω |
|
Network Interface |
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.af) |
|
CVBS |
Not support |
|
RS 485 |
Pelco-D / P protocol, custom protocols available |
|
Storage |
Built-in memory card slot, support microSD/SDHC/SDXC, up to 256G |
|
USB3.0 |
Not support |
|
Fiber Optical |
Not Support |
|
GIS |
Not Support |
|
API |
ONVIF Profile T, support SDK and third-party management platform |
|
Client |
Paramont CMS AI TSS |
|
Web Browser |
IE8-11 (NOT support Safari /Firefox /Chrome) |
General |
|
|
Power |
DC12V,PoE (802.3.af), (Max 12.9W, include IR on ) |
|
Working Condition |
-22°F ~ 140 °F (-30°C ~ 60°C), 90%RH less (non-condensing), cold start at -20°C |
|
Storage Condition |
-40°F ~ 158°F (-40°C ~ 70°C) ;≤ 95%RH |
|
Protection |
IP 67, IK 10, 6000VLightning Protection, Surge Protection and Voltage Transient Protection |
|
Material |
Aluminum Alloy; PC |
|
Angle Adjustment |
Pan:0~360°; Tilt: 0~90°; Rotation: 0~360° |
|
Dimensions (LxWxH) |
11.35” x 6.29”x 5.42” (288.4mm x 159.7mm x 137.7mm) |
|
Weight |
Approx. 4.63lb (2.1Kg) |
|
Certification |
CE, FC, IK10, IP67 |
|
Environment Protection |
Complies with Directive EU RoHS, WEEE, Directive 94/62/EC & REACH |
