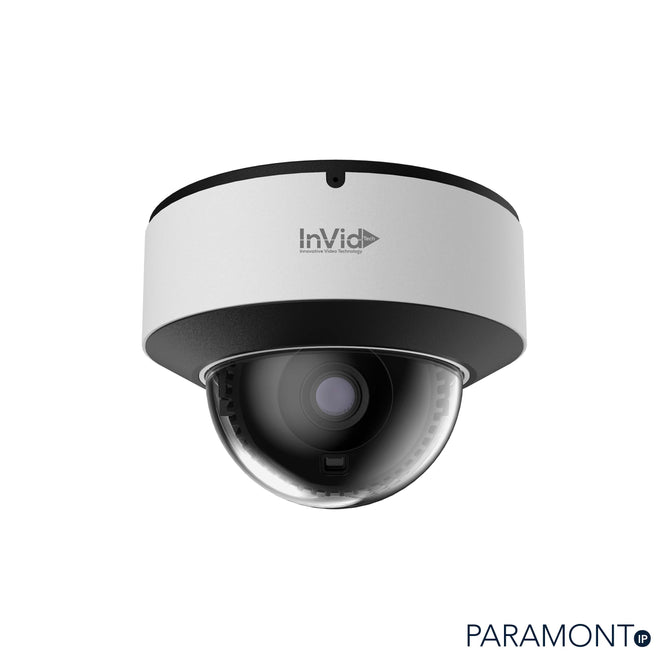

Invid PAR-P8DRIR28NH-AI 8 Megapixel Fixed Lens Dome, 2.8mm

Camera

Image Sensor

1 / 2.8” CMOS

Image Size

3840 x 2160

Electronic Shutter

1 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.01 lux @ F1.2, AGC ON; 0 lux with IR

0.02 lux@F1.6, AGC ON; 0 lux with IR

Lens

2.8mm@F1.6, Horizontal FoV:109.7°;Vertical FoV:77.2°;Diagonal FoV:116.9°

Focus

Fixed

Lens Mount

M12

Day & Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0° ~ 355°; Tilt:0° ~ 67°; Rotation: 0° ~ 355°


Video Compression

Main Stream: H.265+ / H.265 / H.264+ / H.264

Sub Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Third Stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

8MP ( 3840 x 2160 ), 6MP( 3072 x 2048 ),5MP( 2592 x 1944),

4MP( 2592 x 1520 ), 2K ( 2560 x 1440 ), 3MP ( 2304 x 1296 ),

1080P ( 1920 x 1080 ), 720P ( 1280 x 720 ), D1, CIF, 480 x 240

Main Stream

60Hz : 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(1~30fps)

50Hz : 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(1~25fps)

HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps)

Sub Stream

720P/D1/CIF/480  40 (60Hz: 1~30fps; 50Hz: 1~25fps)

Third Stream

D1/CIF/480  40 (60Hz: 1~30fps; 50Hz: 1~25fps)

Bit Rate

64 Kbps ~ 12 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness,

NR,etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Intelligent Analytics (Smart Events)

Perimeter Protection

Line crossing, intrusion
(human/motor vehicle/non-motor vehicle classification)

Target Counting

Line crossing human/motor vehicle/non-motor vehicle counting

Exception Detection

Scene change, video blur and video color cast detection

Face Detection

Face detection and face capture

Interfaces

Network

RJ45

Alarm

1CH alarm input; 1CH alarm output

Audio

1CH audio input ; 1CH built-in MIC

Storage

Built-in micro SD card slot; up to 256GB

Reset

Yes

Functions

Remote Monitoring

Web browsing,CMS remote control

Online Connection

Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP,

PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection; SD card error; SD card full

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock,

image distortion correction, etc

PoE

Yes , IEEE802.3af

IR Distance

98 ft (20~30 m)

Ingress Protection

IP67 & IK10

Others

Power Supply

DC12V/PoE

Power Consumption

< 9W

Operating Environment

-22°F ~ 140°F (- 30 °C ~ 60 °C) Humidity: less than 95 % (non-condensing)

Dimensions

4.7 x 3.5 in (119 x 87.8mm)

Weight ( net )

Approx. 1.4lb (.64KG)

Installation

Ceiling mounting; Wall mounting

Certificate

CE, FCC, ETL: 5025761

Environmental
Protection

Complies with Directive EU RoHS, WEEE(2012/19/EU) ,
directive 94/62/EC and REACH(EC1907/2006)
