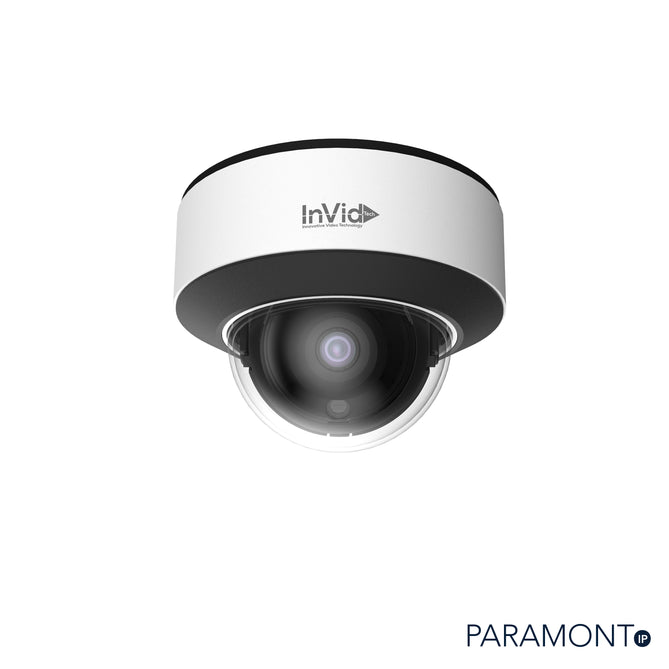

Invid PAR-P5DRIRA2812NH-AI 5 Megapixel Motorized Auto-Focus Dome, 2.8-12mm

Specifications

Camera

Image Sensor

1 / 2.7" CMOS

Image Size

2592 × 1944

Electronic Shutter

1 s ~ 1 / 100000 s

Iris Type

DC Iris

Min. Illumination

0.007 lux@F1.2,AGC ON; 0 lux with IR

0.01 lux@F1.4,AGC ON; 0 lux with IR

Lens

2.8~12mm@F1.4,   motorized

Field of View

Horizontal:    95.1°~30°; Vertical:78.7°~22.8°; Diagonal: 107.6°~37.1°

Lens Mount

Ø14

Day & Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~345°; Tilt:0°~77°;    Rotation: 0°~345°


Video Compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440),

3MP(2304X 1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240)

Main Stream

5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )

Sub Stream

720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

Third Stream

D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Interfaces

Network

RJ45

Video Output

CVBS output (BNC × 1)

Audio

1CH audio input; 1CH audio output; 1CH built-in MIC

Storage

Built-in micro SD card slot; up to 256GB

Reset

Yes

Alarm

1CH alarm input; 1CH alarm output

Intelligent Analytics (Smart Events)

Perimeter Protection

Line crossing, intrusion

(human/motor vehicle/non-motor vehicle classification)

Target Counting

Line crossing human/motor vehicle/non-motor vehicle counting

Exception Detection

Scene change, video blur and video color cast detection

Face Detection

Face detection and face capture

Functions

Remote Monitoring

Web browsing,CMS remote control

Online Connection

Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS

Interface Protocol

ONVIF (Profile T)

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction

PoE

Yes , IEEE802.3af

IR Distance

164 ft (30 ~ 50 m)

Ingress Protection

IP67& IK10

Others

Power Supply

DC12V/PoE

Power Consumption

< 9W

Operating Environment

-22°F~140°F (- 30 °C ~ 60 °C)

Humidity: less than 95 % (non-condensing)

Dimensions

Ø5.55 x 3.94 in ( 141 × 100.2 mm)

Weight ( net )

Approx. 2lbs (0.93KG)

Installation

Ceiling mounting; Wall mounting

Certifications

UL: E496771, CE, FCC

Environmental

Protection

Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
