Description

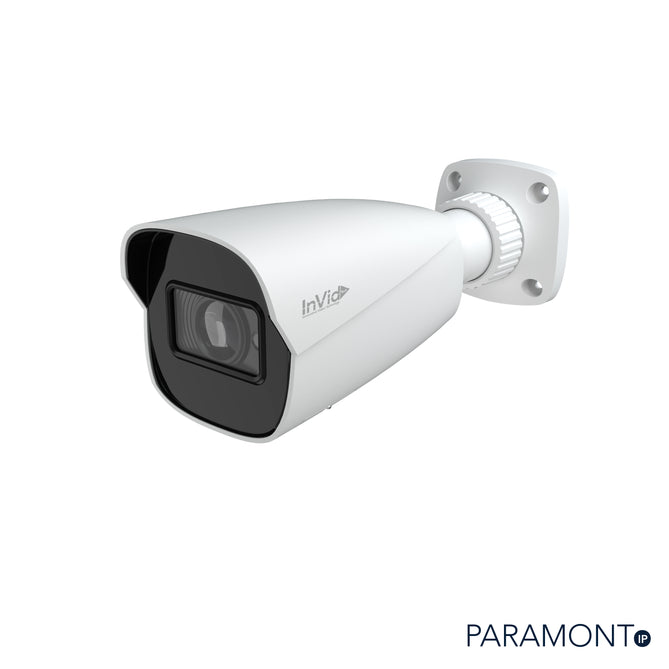

5 Megapixel IP Plug & Play Outdoor Bullet 2.8-12mm Auto-Focus Motorized, 164’ IR Range, 12VDC/PoE, SD Card Slot
Features
- 5 Megapixel Resolution
- Motorized Auto-Focus 2.8-12mm Lens
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- True Day/Night with IR Range up to 164’
- H.265+,H.265,H.264+,H.264,MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot for Local Storage, up to 256 GB
- Audio Input
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Supports Corridor Mode
- Supports Native Chrome/EDGE Use
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Specifications |
|
Camera |
|
Image Sensor |
1 / 2.7 "CMOS |
Image Size |
2592 × 1944 |
Electronic Shutter |
1 s ~ 1 / 100000 s |
Iris Type |
DC Iris |
Min. Illumination |
0.02 lux@F1.6,AGC ON; 0 lux with IR |
0.01 lux@F1.4,AGC ON; 0 lux with IR |
|
Lens |
2.8~12mm@F1.4, H.FoV: 95.1°~ 30°; V.Fov: 78.7°~22.8°; D.FoV: 107.6°~37.1° |
Focus |
Motorized |
Lens Mount |
Ø14 |
Day & Night |
ICR |
Wide Dynamic Range |
120dB |
BLC |
Yes |
HLC |
Yes |
Defog |
Yes |
Digital NR |
3D DNR |
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Image |
|
Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
Resolution |
5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), |
Main Stream |
5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps) |
Sub Stream |
720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Bit Rate |
64 Kbps ~ 8 Mbps |
Bit Rate Type |
VBR / CBR |
Audio Compression |
G711A / U |
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
ROI |
Each ROI to be configured separately |
Interfaces |
|
Network |
RJ45 |
Video Output |
No |
Audio |
1CH audio input |
Storage |
Built-in micro SD card slot; up to 256GB |
Reset |
Yes |
Alarm |
No |
Intelligent Analytics (Smart Events) |
|
Perimeter Protection |
Line crossing, intrusion |
Target Counting |
Line crossing human/motor vehicle/non-motor vehicle counting |
Exception Detection |
Scene change, video blur and video color cast detection |
Face Detection |
Face detection and face capture |
Functions |
|
Remote Monitoring |
Web browsing,CMS remote control |
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol |
ONVIF (Profile T) |
Storage |
Network remote storage; micro SD card storage |
Smart Alarm |
Motion detection, SD card error, SD card full |
General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
PoE |
Yes , IEEE802.3af |
IR Distance |
164 ft (30~50 m) |
Ingress Protection |
IP67 |
Others |
|
Power Supply |
DC12V/PoE |
Power Consumption |
< 9W |
Operating Environment |
-22°F~140°F (- 30 °C ~ 60 °C) |
Humidity: less than 95 % (non-condensing) |
|
Dimensions |
8.57 x 3.17 x 3.16 in (217.8 × 80.5 × 80.3mm) |
Weight ( net ) |
Approx. 1.5lb (0.68KG) |
Installation |
Ceiling mounting; Wall mounting |
Certifications |
UL: E496771, CE, FCC |
Environmental |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
