Description

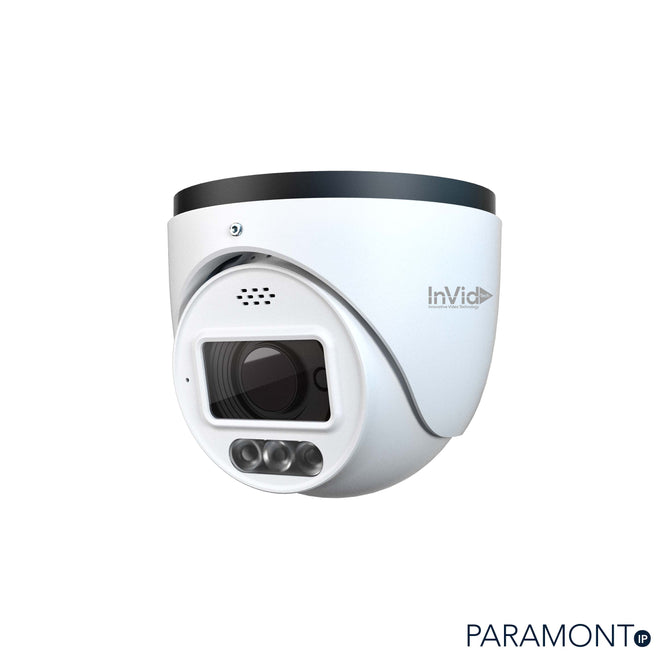

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8-12mm Motorized Auto-Focus Lens, IR Range up to 131’, White Light up to 98’, WDR, Red/Blue Flashing Deterrent Light and/or Siren , Built-in Mic/Speaker, SD Card Slot, 12VDC/PoE
Features
-
True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- Red/Blue Flashing Deterrent Light and/or Siren: Ai Triggered
- White Light for Color at Night: Ai Triggered
- 4 Megapixel Resolution
- 2.8-12mm Motorized Auto-Focus Lens
- True Day/Night with IR Range up to 131’
- White Light up to 98’
- H.265+, H.265, H.264, MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- Supports Native Chrome/EDGE Use
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output: Built-in Speaker
- IP66 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
Camera |
PAR-P4TXIR2812NH-AI2WAY |
Image Sensor |
1 / 3” CMOS |
Image Size |
2592 x 1520 |
Electronic Shutter |
1 s ~ 1 / 100000 s |
Iris Type |
DC Iris |
Min. Illumination |
0.005 lux@F1.6,AGC ON; 0 lux with IR |
Lens |
2.8 ~ 12mm@F1.4, motorized |
Field of View |
Horizontal: 94.2° ~ 29.8°; Vertical: 62.4° ~ 17°; Diagonal: 102° ~ 33.9 |
Lens Mount |
Ø14 |
Wide Dynamic Range |
120dB |
BLC |
Yes |
HLC |
Yes |
Defog |
Yes |
Digital NR |
3D DNR |
Angle Adjustment |
Pan: 0° ~ 360°; Tilt:0° ~ 75°; Rotation: 0° ~ 360° |
Image |
|
Video Compression |
H.265+ / H.265 / H.264+ / H.264 / MJPEG |
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
Resolution |
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
Main Stream |
4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
Sub Stream |
720P/D1/CIF( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Third Stream |
D1/CIF/480x240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Bit Rate |
64 Kbps ~ 8 Mbps |
Bit Rate Type |
VBR / CBR |
Audio Compression |
G711A / U |
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, |
ROI |
Each ROI to be configured separately |
Interfaces |
|
Network |
RJ45 |
Video Output |
No |
Audio |
1CH audio input; 1CH built-in speaker; 1CH built-in MIC |
Alarm |
1CH alarm input; 1CH alarm output |
Storage |
Built-in micro SD card slot; up to 256GB |
Reset |
Yes |
Functions |
|
Remote Monitoring |
Web Client/ NVR/ Paramont CMS AI TSS/ Paramont CMS App |
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol |
ONVIF Profile S |
Storage |
Network remote storage; micro SD card storage |
Smart Alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable connection |
General Function |
Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction |
PoE |
Yes , IEEE802.3af |
IR Distance |
164 ft (30~50 m) |
Protection Grade |
IP66 |
Intelligent Analytics |
|
Video Abnormality |
Scene change detection, video blur detection, video cast detection |
Perimeter Detection |
Line crossing detection (human/vehicle classification); Region |
Sound & Light Warning |
Yes |
Others |
|
Power Supply |
DC12V/PoE |
Power Consumption |
< 12.5W |
Operating |
-22°F ~ 140°F (- 30 °C ~ 60 °C) Humidity: less than 95 % (non-condensing) |
Dimensions |
Ø 4.4 x 3.9 in (111.5 x 99.6 mm) |
Weight ( net ) |
Approx. 1 lb (.64KG) |
Installation |
Ceiling mounting; Wall mounting |
