Description

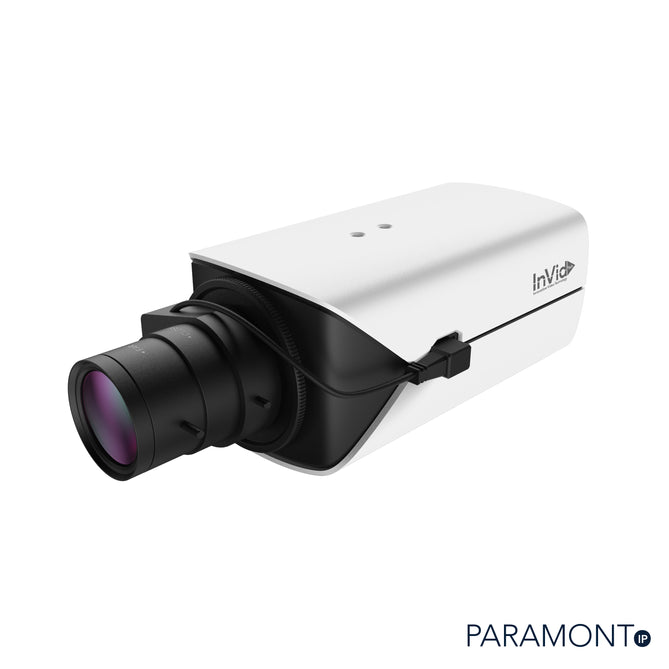

4 megapixel IP Plug & Play Indoor Box Camera, True AI, CVBS Output, True WDR, Audio input/Output, Built-in Mic, SD Card Slot, 12VDC/24VAC/PoE, Facial Rec
Features
- 4 Megapixel Resolution
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- Facial Recognition Capable with Compatible NVR
- Smart H.265, H.265+, H.265, Smart H.264, H.264+, H.264, MJPEG Compression
- 30 FPS Recording and Live
- True WDR 120dB
- CVBS Video Output
- Micro SD Slot: Up to 256GB
- Audio Input: Built-in Mic
- Audio Output
- 12VDC/24VAC/PoE
- ONVIF
- Free App: iOS & Android
- Free CMS (Central Management Software)
- Free MAC client
Camera |
PAR-P4RICS-AI |
|
Image Sensor |
1 / 3 "CMOS |
|
Image Size |
2592 × 1520 |
|
Electronic Shutter |
1 / 30 s ~ 1 / 100000 s |
|
Iris Type |
DC Iris |
|
Min. Illumination |
Color: 0.0028 lux@F1.2,AGC ON B&W: 0.001 lux@F1.2,AGC ON |
|
Lens Mount |
CS |
|
Day & Night |
ICR |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
Digital NR |
3D DNR |
Image |
|
|
Video Compression |
Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Resolution |
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
|
Main Stream |
4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
|
Sub Stream |
720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Bit Rate |
64 Kbps ~ 8 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Audio Compression |
G711A / U |
|
Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen NR,etc. adjustable through client software or web browser |
|
ROI |
Each ROI to be configured separately |
Interfaces |
|
|
Network |
RJ45 |
|
Video Output |
CVBS output (BNC × 1) |
|
Audio |
1CH audio input; 1CH audio output; 1CH built-in MIC |
|
Alarm |
2CH alarm input; 2CH alarm output |
|
Storage |
Built-in micro SD card slot; up to 256GB |
|
Reset |
Yes |
|
RS 485 |
Yes |
Intelligent Analytics (Smart Events) |
|
|
Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
|
Target Counting |
Line crossing human/motor vehicle/non-motor vehicle counting |
|
Exception Detection |
Scene change, video blur and video color cast detection |
|
Face Detection |
Face detection and face capture |
|
General Intelligence |
Crowd density detection, heat map, object abandoned/missing detection* |
Functions |
|
|
Remote Monitoring |
Web browsing,CMS remote control |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
|
General Function |
Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
|
PoE |
Yes , IEEE802.3af |
Others |
|
|
Power Supply |
AC24V/DC12V/PoE |
|
Power Consumption |
< 11W |
|
Operating Environment |
-22°F~140°F (- 30 °C ~ 60 °C) |
|
Humidity: less than 95 % (non-condensing) |
|
|
Dimensions |
6 x 3 x 2 in (160.8 × 79 × 64 mm) |
|
Weight ( net ) |
Approx. 0.5KG |
|
Installation |
Ceiling mounting; Wall mounting |
