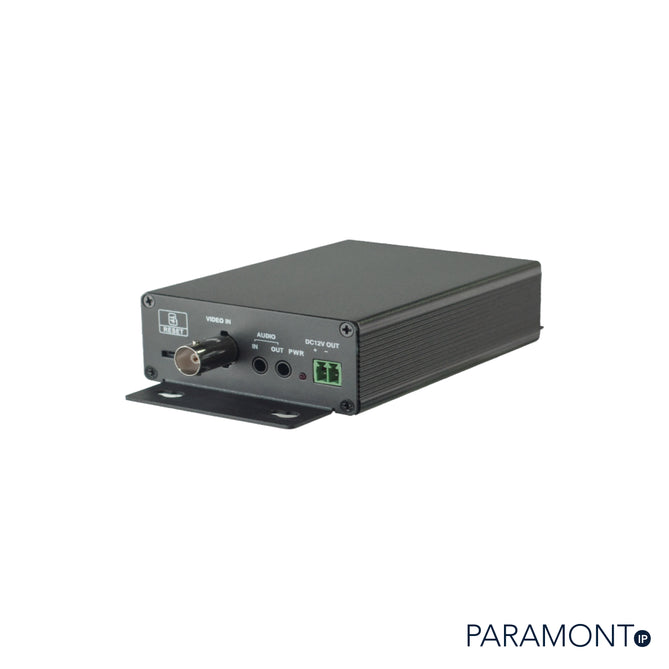

Invid PAR-ENCODER1 4 Megapixel Encoder

InvidSKU: PAR-ENCODER1

Price:
Sale price$277.20
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

Single Channel Encoder with Video loop Out, SD Card Slot, 12VDC/Poe

Features

  • Single Channel encoder
  • Supports up to 4MP AHD, 2MP TVI/AHD/CVI and CVBS Signals
  • H.265/H.264/MJPEG Compression
  • Video Loop-Out - CVBS (to monitor or DVR)/HD Analog (DVR)
  • Up the Cable (UTC) Control - For PTZs
  • SD Card Local Storage, 128GB
  • Audio Input/Output
  • 12VDC/PoE Operation
  • 12VDC Power Output, up to .5A/6W
  • ONVIF
  • Smart Analytics
  • Free iOS & Android Apps for Smart Phones & Tablets
  • Free Central Management Software (CMS) to manage multiple units & sites from a single platform
  • Free MAC client software available to manage your system from your Apple computer

Video & Audio Input

HD Analog Video Input

1 CH, BNC interface ( level : 1.0Vp-p, impedance : 75Ω ), PAL / NTSC self-adaptive,

4MP AHD /CVBS video access; 2MP TVI/AHD/CVBS video access

Audio Input

1 CH: 3.5 mm interface, share with MIC IN interface

Video & Audio Encoding Parameters

Video Compression

H. 264, H.265, MJPEG

H.264 Compression Standard

Baseline Profile / Main Profile / High Profile

Bit Rate Type

VBR / CBR

Quality

Five levels under VBR; Freely adjustable under CBR

Bit Rate

32Kbps ~ 16Mbps

Resolution

4MP ( 2560×1440 ), 3MP ( 2304×1296 ) / ( 2048×1536 ),

1080P ( 1920×1080 ), 960P ( 1280×960 ), 720P ( 1280×720 ),

D1, CIF, 480×240

Multi-streams

4MP ( 1~30fps ) / 3MP ( 1~30fps ) / 1920×1080 ( 1~30fps ) /

960P ( 1~30fps ) / 720P ( 1~30fps )

720P ( 1~30fps ) / D1 ( 1~30fps ) / CIF ( 1~30fps )

D1 ( 1~30fps ) / 480×240 ( 1~30fps ) / CIF ( 1~30fps )

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser

ROI

Yes

Interface

Network

RJ45

Audio

MIC IN × 1, SPK OUT × 1

Storage Card

Up to 128GB

RS485

Yes

Alarm Input

1 CH alarm input

Alarm Output

1 CH alarm output

Local Output

1 CH BNC output

Functions

Remote Monitoring

IE browsing, CMS remote control

Online Connection

Support simultaneous monitoring for up to 6 users;

Support multi-stream real time transmission

Network Protocol

TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP

Interface Protocol

ONVIF, GB-T / 28181-2011

Image Snap

JPEG encoding, image quality adjustable

Smart Analytics

Exception detection, intrusion detection, line crossing detection

Ingress Protection

TVS6000V lightning protection, surge protection

Others

Power Supply

PoE / DC12V

Power Output

Max 12V@0.5A

Power Consumption

< 4W

Working Environment

-4°F ~ 131°F (-20℃ ~ 55℃), 10% ~ 90% ( relative humidity )

Dimensions

5.6" x 2.9" x 1.1" (140 × 74.3 × 29mm) ( W × D × H )

Weight (Net)

220g

Installation

Wall mounting
