Description

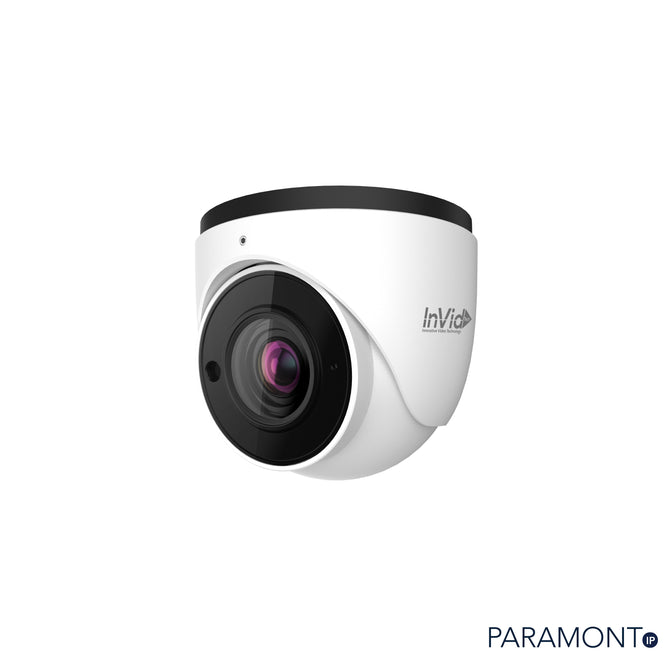

8 Megapixel, TVI/AHD/CVI/CVBS Outdoor Turret, 2.8-12mm Motorized A/F, 98’ IR Range, 12VDC
Features
- 8 Megapixel Resolution (3840 x 2160)
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Motorized Auto-Focus 2.8-12mm Lens
- True Day/Night
- D-WDR
- 98’ Smart IR Range
- Up The Cable (UTC) Function
- IP66 Weather Resistant
- 12VDC Operation
- Through InVid Tech DVR: Free App, CMS & MAC Client
|
Camera |
PAR-C8TXIRA2812 |
|
Image Censor |
1 / 2.5 “CMOS |
|
Resolution |
8MP/5MP/4MP |
|
Image Size |
3840 x 2160 |
|
Video Output |
AHD / TVI /CVI/CVBS |
|
Image System |
PAL / NTSC |
|
Electronic Shutter |
Auto |
|
IR Distance |
98 ft. |
|
Frame Rate |
8MP @15fps, 5MP @20fps, 4MP @30fps |
|
Min. Illumination |
Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR |
|
Lens |
2.8-12 mm, Automatic Focusing and Motorized Zoom Lens |
|
Lens FOV |
2.8-12mm: 97.5°-38.5° H, 65.3°-22.2° V, 105.2°-43.7° Crossline |
|
Lens Mount |
D14 |
|
S/N Ration |
≥52dB ( AGC OFF ) |
|
Ingress Protection |
IP66 |
|
Functions |
|
|
Function Control |
OSD (UTC Control) |
|
Day & Night |
ICR |
|
Digital WDR |
Yes |
|
Digital NR |
Yes |
|
Auto White Balance |
Yes |
|
BLC |
Yes |
|
HLC |
Yes |
|
Sharpness |
Yes |
|
Mirror Image |
Yes |
|
Smart IR |
Yes |
|
Image Setting |
Yes |
|
Defect Correction |
Auto |
|
Language |
11 languages |
|
Angle Adjustment |
Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
|
Others |
|
|
Power Supply |
DC12V ( ± 15% ) |
|
Power Consumption |
IR OFF : < 2W; IR ON : < 5W |
|
Working Environment |
-22°F ~ 122°F (-30 °C ~ 50 °C), 10 % ~ 90 % (relative humidity) |
|
Dimensions |
5 x 4 in (130.3 x 110KG) |
|
Weight |
Approx. 1.5 lbs (0.66KG) |
