Description

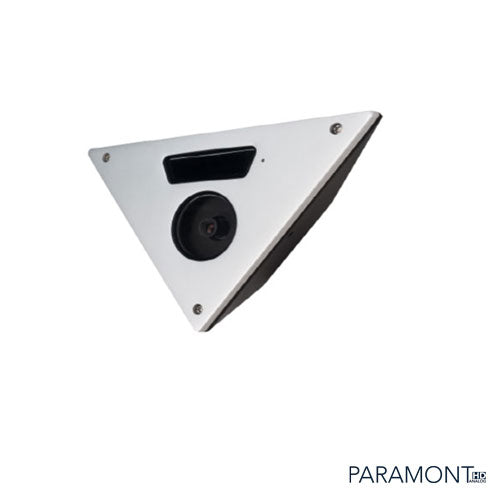

2 Megapixel TVI/AHD/CVI/CVBS, Indoor Metal Plate Elevator Camera with Covert 32' IR Range, D-WDR, 12VD
Features
- Full Metal Front Cover
- True Day/Night with Covert IR Range up to 32’
- D-WDR
- Up The Cable (UTC) Function
- Indoor Only
- 3D DNR (Digital Noise Reduction)
- Sens-Up Option (x30 max)
- 12VDC Operation
- OSD Control
- Through InVid Tech DVR: Free App, CMS & MAC Client
Model |
PAR-ALLELEV29 |
|
Image Sensor |
1/2.8” Sony IMX322 CMOS image sensor |
|
Total Pixel |
1956(H) x 1266(V) 2.4M pixels |
|
Active Pixel |
1944(H) x 1092(V) 2.1M pixels |
|
Resolution |
1080p |
|
Min. Illumination |
0.0001 lux at IR on |
|
Scanning System |
Progressive |
|
Video Output |
4-in-1 (TVI/CVI/AHD/CVBS) |
|
S/N Ratio |
More than 50dB (AGC off) |
|
AGC |
Off/0 – 15 |
|
Shutter Speed |
AUTO/MANUAL(1/50(60) ~ 1/50,000 sec) |
|
SENS-UP |
Off/X2 – X30 |
|
Brightness |
0 - 100 |
|
Backlight |
OFF/BLC/HSBLC |
|
D-WDR |
OFF/ON/AUTO |
|
Defog |
Off/Auto |
|
Day & Night |
Auto/Color/B&W/EXTERN |
|
White Balance |
ATW/AWC/INDDOR/OUTDOOR/Manual/AWB |
|
DNR |
Off/Low/Middle/High |
|
Mirror |
Off/MIRROR/V-FLIP/ROTATE |
|
Sharpness |
0 -10 steps |
|
Privacy Mask |
4 Masks |
|
Motion Detection |
Off/On |
|
Language |
English/Chinese/Germany/French/Italian/Spanish/Polish/Russian/Portuguese/ Netherlands(Dutch)/Turkish |
|
Power Source |
DC12V ±10% |
|
Power Consumption |
Max 4.0 Watt at IR on Max 1.0 Watt at IR off |
|
Operating Temperature |
14°F ~ 122°F (-10°C ~ 50°C) |
|
Operating Humidity |
10% to 85% |
|
Lens |
2.9mm MP lens |
|
Dimension |
7.4 x 5.5 x 1.66 in (190 x 140 x 42.3 mm) |
|
Weight |
.85lbs (390g) |
