Description

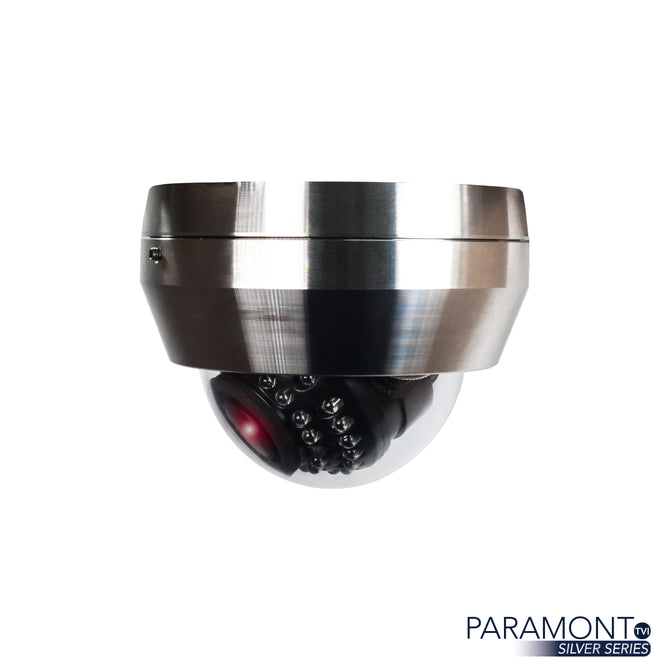

2 Megapixel TVI/AHD/CVI/Analog, Outdoor Stainless Steel Rugged Dome, 2.8-12mm, 75' IR Range, 12VDC
Features
- 2 Megapixel 1080p (TVI/AHD/CVI) Resolution
- All-in-One Technology (TVI/AHD/CVI/Analog 960h) w/Separate Analog BNC
- Motorized Auto-Focus 2.8-12mm Lens
- True Day/Night
- 75’ IR Range
- Up The Cable (UTC) Function
- Stainless Steel Housing (Grade Steel | AISI 316)
- IP68 Waterproof
- IK10 Vandal Resistant
- 12VDC Only Operation
Model |
PAR-ALLDRSSIRA2812 |
|
Image Sensor |
1/2.8” Sony Exmor CMOS image sensor |
|
Active Pixel |
1920(H) x 1080(V) |
|
Resolution |
1080p@30fps/1080p@25fps |
|
Min. Illumination |
Color: 1.0 lux, BW : 0.5 lux, Color DSS: 0.002 lux, BW DSS : 0.0008 lux |
|
Scanning System |
Progressive |
|
Video Output |
AHD, CVI, TVI : 1080P Analog: NTSC/ PAL CVBS |
|
S/N Ratio |
More than 50dB (AGC off) |
|
AGC |
Off/0 - 15 |
|
Shutter Speed |
AUTO/MANUAL(1/50(60) ~ 1/50,000 sec) |
|
SENS-UP |
Off/X2 – X30 |
|
Brightness |
0 - 100 |
|
Backlight |
Off/BLC/HSBLC |
|
D-WDR |
Off/0 ~ 8 |
|
Defog |
Off/Auto |
|
Day & Night |
Auto/Color/B&W/EXTERN |
|
White Balance |
ATW/AWC/INDDOR/OUTDOOR/Manual/AWB |
|
DNR |
Off/Low/Middle/High |
|
Mirror |
Off/MIRROR/V-FLIP/ROTATE |
|
Sharpness |
0 -10 steps |
|
Privacy Mask |
4 Masks |
|
Motion Detection |
Off/On |
|
Language |
English/Chinese/Germany/French/Italian/Spanish/Polish/Russian/Portuguese/Dutch/Turkish |
|
Housing |
IP68 Waterproof, IK10 Housing, Grade Steel | AISI 316 |
|
IR Range |
75’ |
|
Power Source |
DC12V ±10% |
|
Power Consumption |
Max 4.0 Watt at IR on |
|
Operating Temperature |
-4°F ~ 140°F (-20°C ~ 60°C) |
|
Operating Humidity |
10% to 85% |
|
Lens |
2.8~12mm DC auto iris motorized MP lens |
|
Dimension (Φ x W x H) |
Φ3.14 x 4.67 x 3.48 in (Φ80 x118 x 88.5mm) |
|
Weight |
2.88lbs (1310g) |
