Description

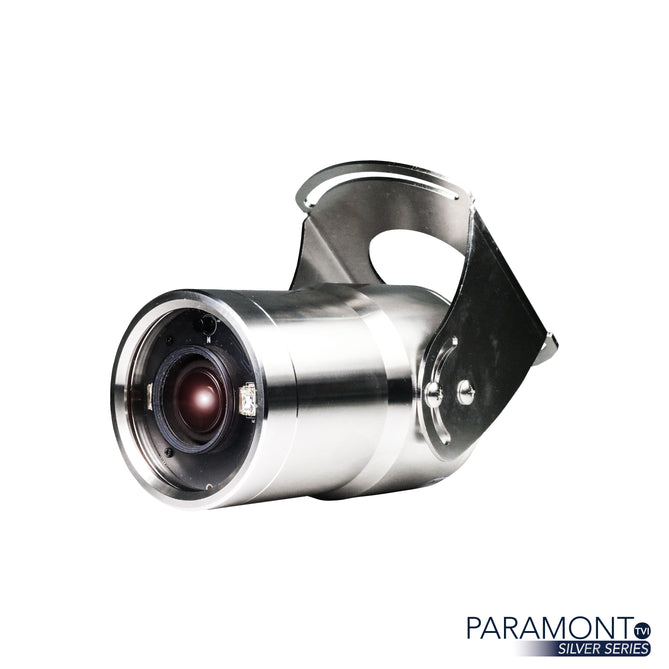

2 Megapixel TVI/AHD/CVI/Analog, Outdoor Stainless Steel Bullet, 2.8-12mm Auto-Focus Motorized , 65' EXIR Range, 12VDC
Features
- 2 Megapixel 1080p (TVI/AHD/CVI) Resolution
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- with Separate Analog BNC
- Motorized Auto-Focus 2.8-12mm Lens
- True Day/Night
- 65’ IR Range with EXIR Technology
- Up The Cable (UTC) Function
- Stainless Steel Housing (Grade Steel | AISI 316)
- IP68 Waterproof
- OSD Remote on Detachable Cable
- 12VDC Only Operation
|
Model |
PAR-ALLBSSXIRA2812 |
|
Image Sensor |
1/3” Panasonic CMOS image sensor |
|
Total Pixel |
1956(H) x 1266(V) = 2,476,296 |
|
Active Pixel |
1944(H) x 1092(V)= 2,122,848 |
|
Resolution |
HD-TVI: NTSC: 1080p/30fps, 720P/60fps, PAL: 1080P/25fps, 720P/50fps, ANALOG : 700TVL |
|
Scanning System |
Progressive |
|
Video Output |
TVI/AHD/CVI/CVBS |
|
S/N Ratio |
More than 50dB (AGC off) |
|
Min. Illumination |
Color : 1.0 lux, BW : 0.5 lux Color DSS : 0.002 lux, BW DSS : 0.0008 lux |
|
AGC |
Off/0 - 10 |
|
Electronic Shutter |
AUTO/MANUAL(1/30 ~ 1/30,000 sec) |
|
SENS-UP |
Off/X2 – X32 |
|
Brightness |
0 - 20 |
|
WDR/BLC |
Off/BLC/WDR |
|
D-WDR(ACE) |
Off/Low/Middle/High |
|
Defog |
Off/On |
|
Day & Night |
AUTO/Color/B&W/Extern |
|
White Balance |
AUTO/AUTOext/PRESET/Manual |
|
3D DNR |
Off/Low/Middle/High |
|
Mirror |
Off/On |
|
Flip |
Off/On |
|
Sharpness |
0 -10 steps |
|
Privacy Mask |
21 Masks (BOX 15, POLYGON 7) |
|
Motion Detection |
Off/On |
|
Language |
ENG/CHN/CHN(S)/JPN/KOR |
|
Housing |
IP68 Waterproof, Grade Steel | AISI 316 |
|
IR Range |
65' |
|
Power Source |
DC12V ±10% |
|
Power Consumption |
Max 4.5 Watt |
|
Operating Temperature |
-4° ~ 122°F (-20° ~ 50℃) |
|
Operating Humidity |
10% to 85% |
|
Lens |
2.8~12mm DC auto iris motorized MP lens (ICR) |
|
Dimension (Ø x L x H) |
2.83 x 6.63 x 4.72 inches (Ø72 x 168.5 x 120mm) |
|
Weight |
3.86 lbs (1520 grams) |
