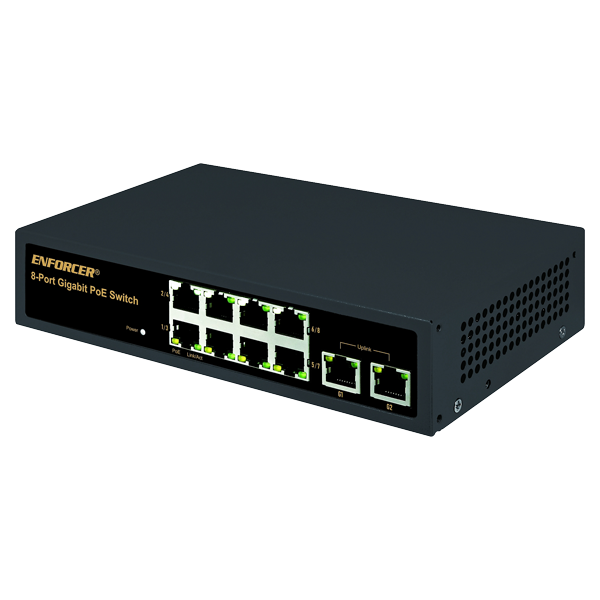

Seco-Larm NS-508UT-GAQ Unmanaged PoE Switch, 8-Port

Seco-LarmSKU: NS-508UT-GAQ

Price:
Sale price$121.50
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

ENFORCER Unmanaged PoE Switches provide Ethernet and power to PoE devices. Fast packet forwarding capability and extra backplane bandwidth ensure clean images at fast transmission speeds for video, making them well-suited for HD CCTV.

  • Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
  • Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
  • Easy plug-and-play installation
  • 2 Uplink ports
  • Supports 10,100BaseT, 1000BaseT Gigabit
  • Conforms to IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at and IEEE 802.3ab
  • IEEE 802.3x Flow control



Specifications

Operating voltage 100~240 VAC
Power consumption <15W
Ethernet speed 10/100/1000Mbps (uplink, 1000Mbps)
Ethernet standard IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3ab
Transmission distance 328ft (100m)
Switching capacity 20G
Transfer rate – 10Mbps 14,880pps
Transfer rate – 100Mbps 148,800pps
Transfer rate – 1000Mbps 1,488,000pps
MAC Address table 4k
LED indicators Connection/transmission and PoE for each port, power
PoE capacity 120W
Operating humidity 0~85% Non-condensing
Operating temperature -40°~158° F (-40°~70° C)
Dimensions 7-7/8″x2-3/4″x4-5/8″ (200x44x118 mm)
Weight 1-lb 12.4-oz (806g)



Troubleshooting

PoE Device doesn’t function
correctly
  •  Confirm that both input and output devices are turned on
  • Ensure that the Ethernet cable does not exceed 328ft (100m) or 656ft
    (200m) for NS-104UT-MAQ with VLAN function switch turned ON
  • Confirm that no PoE equipment power requirement exceeds 30W
  • Confirm that the Ethernet cable meets EIA/TIA 568A or 568B standard
    and that both ends are the same standard (not a crossover cable)
  • Test that the Ethernet cable to ensure that it is operational
  • Test with another PoE device that is known to be operating correctly
