Seco-Larm MVE-AHMPM-41NQ 4K HDMI Extender over IP – Tx and Rx Kit


Sale price$188.33
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

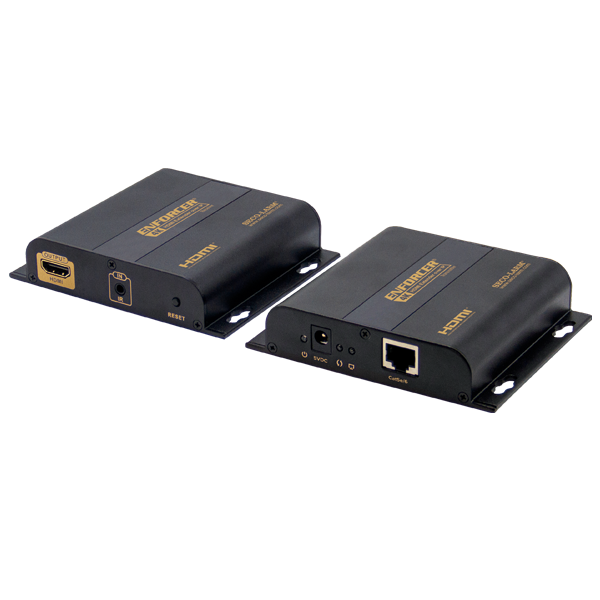

The MVE-AHMPM-41NQ 4K HDMI Extender over IP extends the range of HDMI signals by using an active transmitter and receiver to send video and audio over a single Cat5e/6 cable. The 4K HDMI Extender over IP supports IR signals using the included IR transmitter and receiver, allowing remote control use from one end of an installation to control a device such as a media player or DVD player at the opposite end of the installation. The MVE-AHMPM-41NQ supports One-to-One, and One-to-Many installations, allowing the connection of multiple units for extended range.

  • Extends HDMI over one Cat5e/6 cable or IP network
  • Supports One-to-One, and One-to-Many applications
  • Power adapters and IR hardware included
  • IR Support (20kHz~60kHz)
  • HDCP Compliant
  • Receiver (MVE-AHMPM-41NRQ) also available separately



Maximum video resolution 4K@30Hz
Deep color 24-bit
Video formats supported DTV/HDTV: 480i, 480p,576i,576p,720p,1080i, 1080p, 4K@30Hz
Range 4K – Cat5 262ft (80m)
Range 4K – Cat5e 328ft (100m)
Range 4K – Cat6 393ft (120m)
IP addressing Static
IR frequency 20kHz~60kHz
Operating voltage 5VDC
Power supply 2A@5VDC
Power consumption Transmitter: 6W Receiver: 4W
Operating temperature 32°~140° F (0°~60° C)
Dimensions 4-7/16″x15/16″x3-11/16″ (112x23x94 mm)
Weight 5.9-oz (170g)
