Description

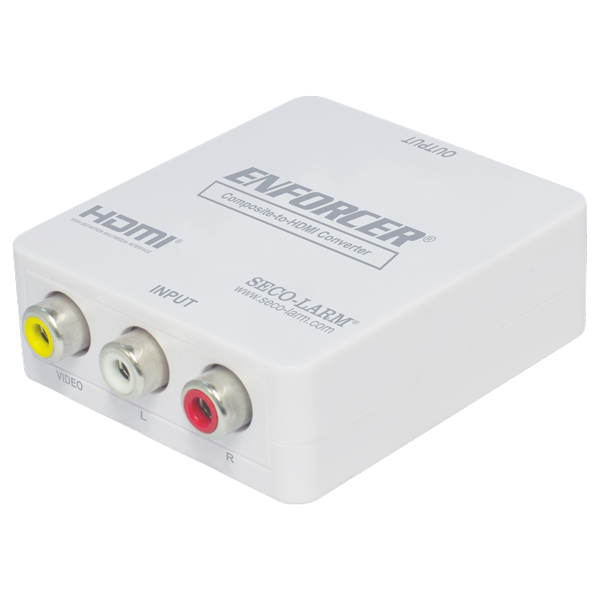

The MVA-TH01Q Composite-to-HDMI Converter with Scaler allows the user to convert video from analog devices with composite (RCA) outputs on HDMI displays. Active operation allows the conversion of formats as large as 1920×1080. The MVA-TH01Q also has a L/R analog stereo input allowing the conversion of audio as well.
- Converts composite video and stereo audio to 720p or 1080p HDMI.
- Supports NTSC, PAL, and SECAM video inputs.
- Supports up to 1080p on HDMI output.
- Stereo audio input.
- Selectable between 720p and 1080p upscaling.
- Plug and play operation.
Specifications
| Supported Resolutions | 720p/1080p |
| Video Input Signal | 1Vp-p |
| DDC Input Signal | 5V |
| Vertical Frequency | 60Hz |
| Video Amplifier Bandwidth | 1.65Gbps |
| Power Supply | 5VDC (USB) |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 2-3/8″ x 2-1/8″ x 1-3/16″ (60 x 54 x 20 mm) |
| Weight | 1.4oz (40g) |
| Video Formats Supported | NTSC / PAL / SECAM |
| Audio Formats Supported | Stereo |
| Video Input Connector | RCA Female |
| Video Output Connector | HDMI Type-A 19-pin female |
