Description

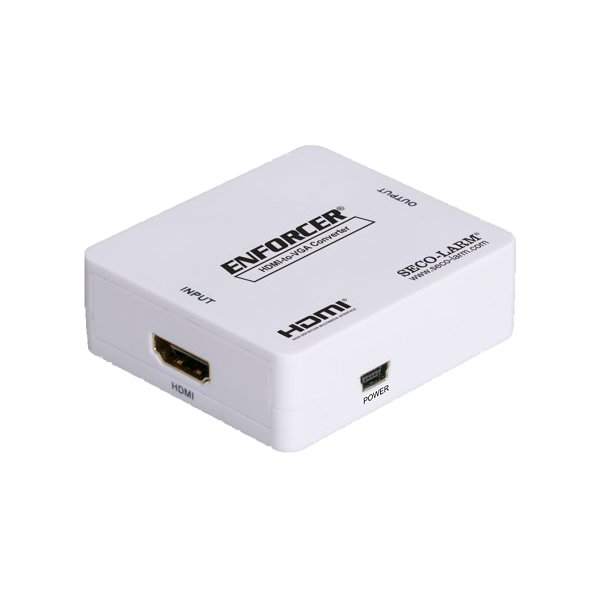

The MVA-HV01Q HDMI®-to-VGA Converter allows the user to view video in formats as large as 1920×1080 from HDMI® devices on VGA displays. The MVA-HV01Q also has a 3.5mm stereo output allowing the conversion of audio as well.
- Converts HDMI® to VGA+Audio
- Supports input resolutions up to 1920×1080
- Supports up to 1920×1080 on VGA output
- Stereo audio output
- Plug and play operation
Specifications
| Supported Resolutions | 1152×864, 1280×800, 1360×768, 1440×1050, 1440×900, 1680×1050, 1600×1200, 1920×1080 |
| Video Input Signal | 0.5~1.0Vp-p |
| DDC Input Signal | 5.0Vp-p |
| Vertical Frequency | 50/60Hz |
| Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
| Power Supply | 5VDC (USB) |
| Operating Temperature | 32°~158° F (0°~70° C) |
| Operating Humidity | 5%~95% RH (no condensation) |
| Dimensions | 2-3/8” x 2-1/8” x 13/16” (60 x 54 x 20 mm) |
| Weight | 1.5oz (43g) |
Troubleshooting
| HDMI device does not function correctly |
|
