Description

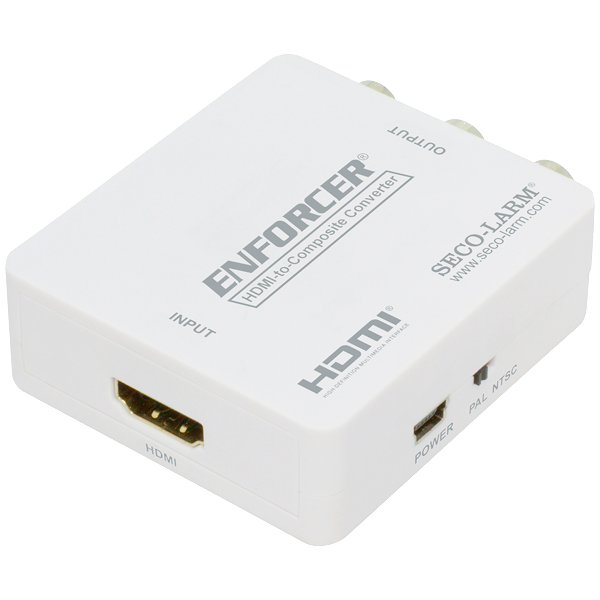

- Converts HDMI® to composite video + stereo audio
- Supports input resolutions up to 1920×1080
- Supports NTSC or PAL output
- Stereo analog audio output
- Plug and play operation
Specifications
| Input Video Signal | 3.3V |
| Video Formats Supported | High-speed HDMI®, HDCP 1.2 |
| Audio Formats Supported | LPCM |
| Input DDC Signal | 5V |
| Output Video | NTSC/PAL |
| Vertical Frequency | 50/60Hz |
| Resolutions Supported | 1080p/1080i/720p/576p/576i/480p/480i |
| Video Amplifier Bandwidth | 1.65Gpbs |
| Video Input Connector | HDMI® Type A 19-pin female |
| Video Output Connector | RCA female |
| Output Audio Connector | RCA female |
| Power Supply | 5VDC (USB) |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 2-3/8” x 2-1/8” x 13/16” (61 x 54 x 20 mm) |
| Weight | 1.4-oz (40g) |
| ESD Protection | ±8 kV (air-gap discharge), ±4 kV (contact discharge) |
