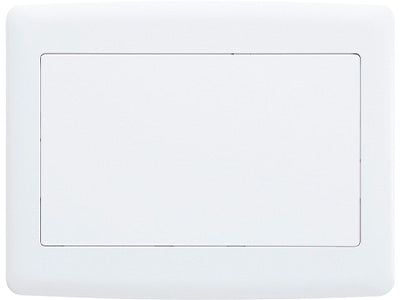

Aiphone IXW-MA-SOFT (-5,-10) Multi-Purpose Adaptor With IX-SOFT License

AiphoneSKU: IXW-MA-SOFT

Price:
Sale price$1,466.50
Stock:
Usually ships within 3-5 business days
Buying in Bulk? Have Questions?
Call Us: 718-435-2800

Description

The IXW-MA-SOFT is a multi-purpose adaptor with licenses for 1, 5, or 10 IX-SOFT installations.

The IXW-MA-SOFT comes with 4 contact inputs and 10 relay outputs. The inputs on the adaptor can be used to send a command to a specific station to perform a task. The relays on the adaptor can be associated to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state. This is beneficial when door release contacts need to be located inside the facility at a secure location, instead of at the door station.

The IXW-MA-SOFT is surface mounted to a 3 or 4-gang box or ring. Wire terminations are made via option connectors supplied with the unit. Each connecting wire will need to be secured with a wire nut or crimp connector.

The IXW-MA-SOFT is a PoE device, and can be programmed via IX Support Tool 5.0 or later.

IXW-MA-SOFT includes 1 IX-SOFT license.
IXW-MA-SOFT-5 includes 5 IX-SOFT licenses.
IXW-MA-SOFT-10 includes 10 IX-SOFT licenses.



FEATURES

  • Supports 1, 5 or 10 IX-SOFT licenses
  • PoE powered (802.3af)
  • 4 contact inputs
  • 10 relay outputs
    • Outputs 1-4 are Form C
    • Outputs 5-10 are Form A
  • 24V AC/DC 500mA relay contact rating
  • Programmed via IX Support Tool



SPECS
Power Source: PoE (IEEE 802.3af class 0)
Power Draw: 6.48 Watts (Max)

Relay Output:
Relays 1-4: Form C 24V AC/DC 500mA
Relays 5-10: Form A 24V AC/DC 500mA

LAN: Ethernet (10BASE-T, 100BASE-TX)
Protocols: IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SFTP, DHCP, NTP, DNS
Encryption system: TLS1.2
Port Security: IEEE 802.1X
Operating Temp: 14° ~ 122°F (-10° ~ 50°C)
Dimensions: 7-½" H x 9-⅝" W x 13⁄16" D
